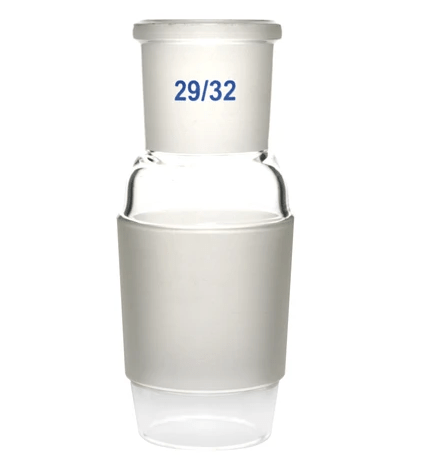

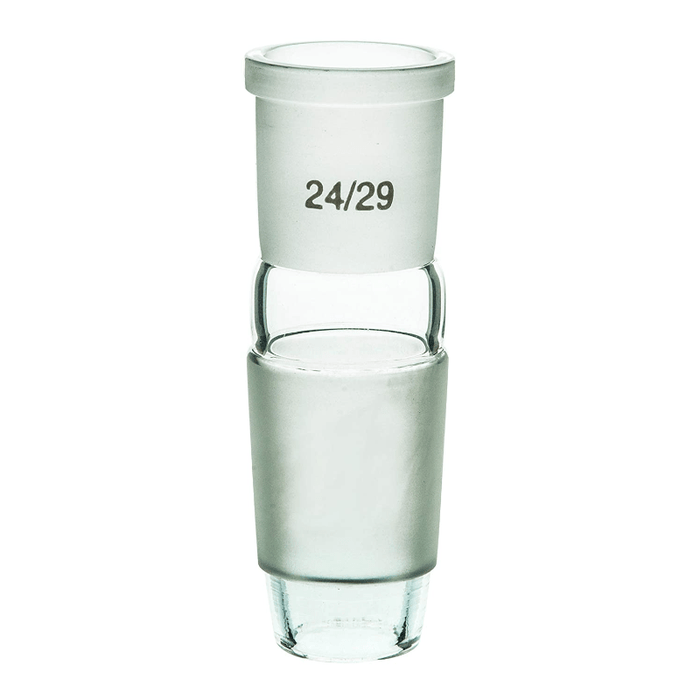

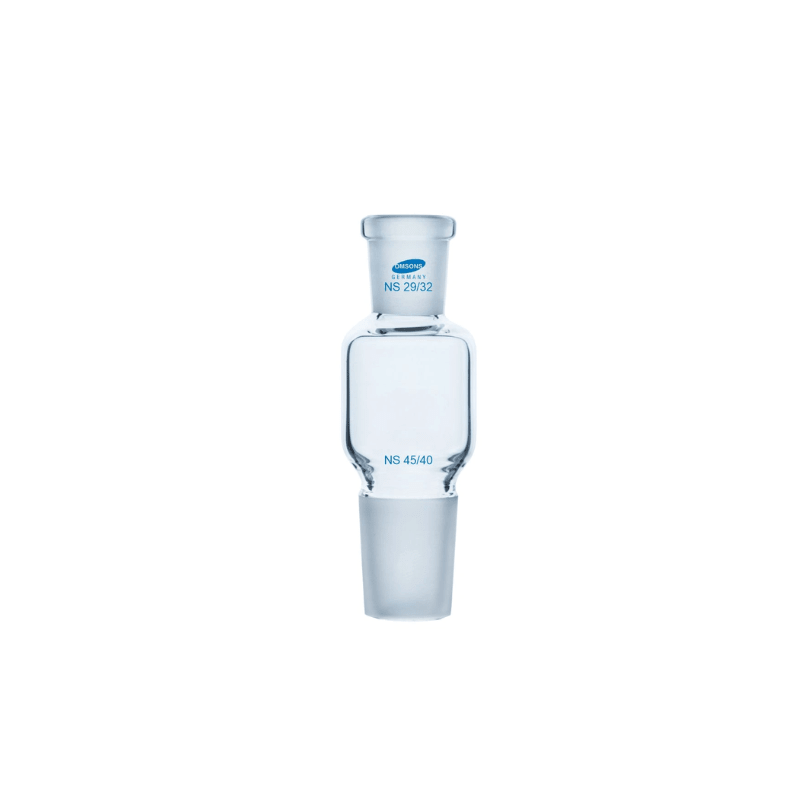

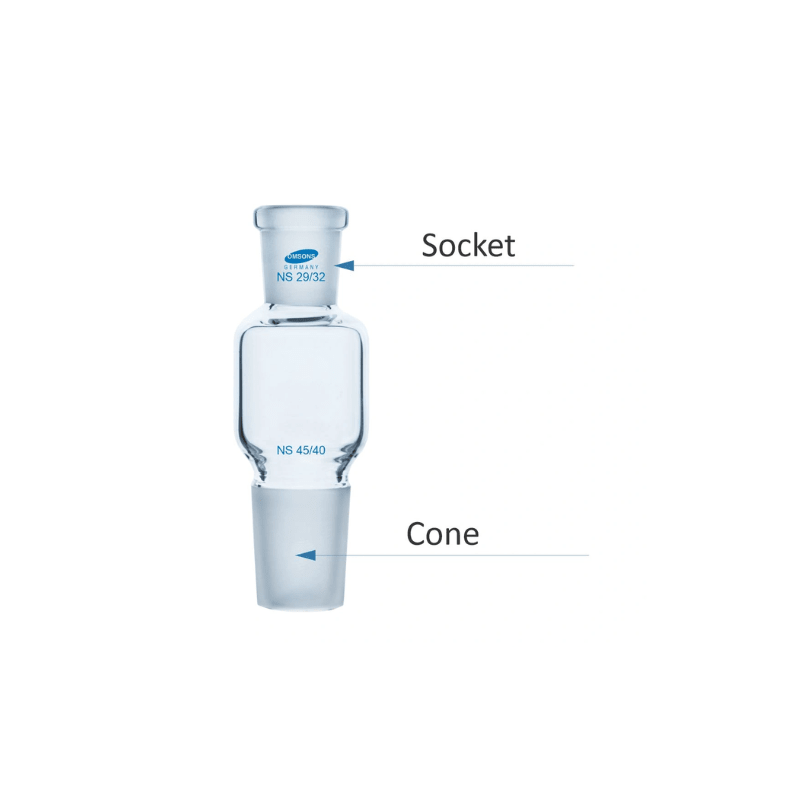

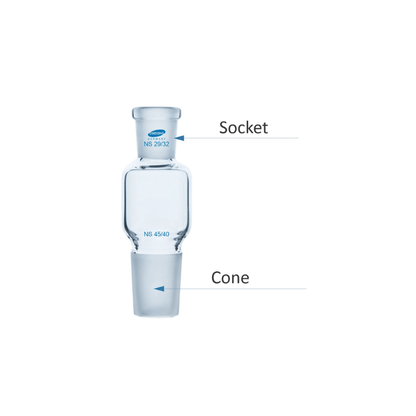

The OMSONS Reduction Adapter (Catalog No. 165) is the inverse of the expansion adapter. It is used to connect a larger neck (socket) to a smaller component (cone), featuring a small socket at the top and a large cone at the bottom.
Key Features
- Material: High-quality Borosilicate 3.3 glass, ensuring high thermal resistance and chemical durability.
- Standards: Manufactured in compliance with DIN 12257 and ISO 383.
- Joints: Precision ground glass joints for leak-proof and vacuum-tight assemblies.
Standard Joint Sizes
Common combinations for adapting standard laboratory glassware include:
| Socket Size (Top/Small) | Cone Size (Bottom/Large) |
| 14/23 | 19/26 |
| 14/23 | 24/29 |
| 19/26 | 24/29 |
| 19/26 | 29/32 |
| 24/29 | 29/32 |
| 29/32 | 34/35 |
Applications
- Equipment Integration: Used when you need to fit a smaller accessory, such as a thermometer pocket, dropping funnel, or gas inlet, into a larger flask neck.
- System Downsizing: Allows for the connection of smaller-scale condensers or distillation heads to larger boiling flasks
Spesification
- Material: Clear 3.3 Borosilicate Glass
- Size: Select from drop down
- Joint Size: Select from drop down
- Brand: OMSONS
- Product of India
