• Short Path Distillation Glassware only - 5L Glassware set

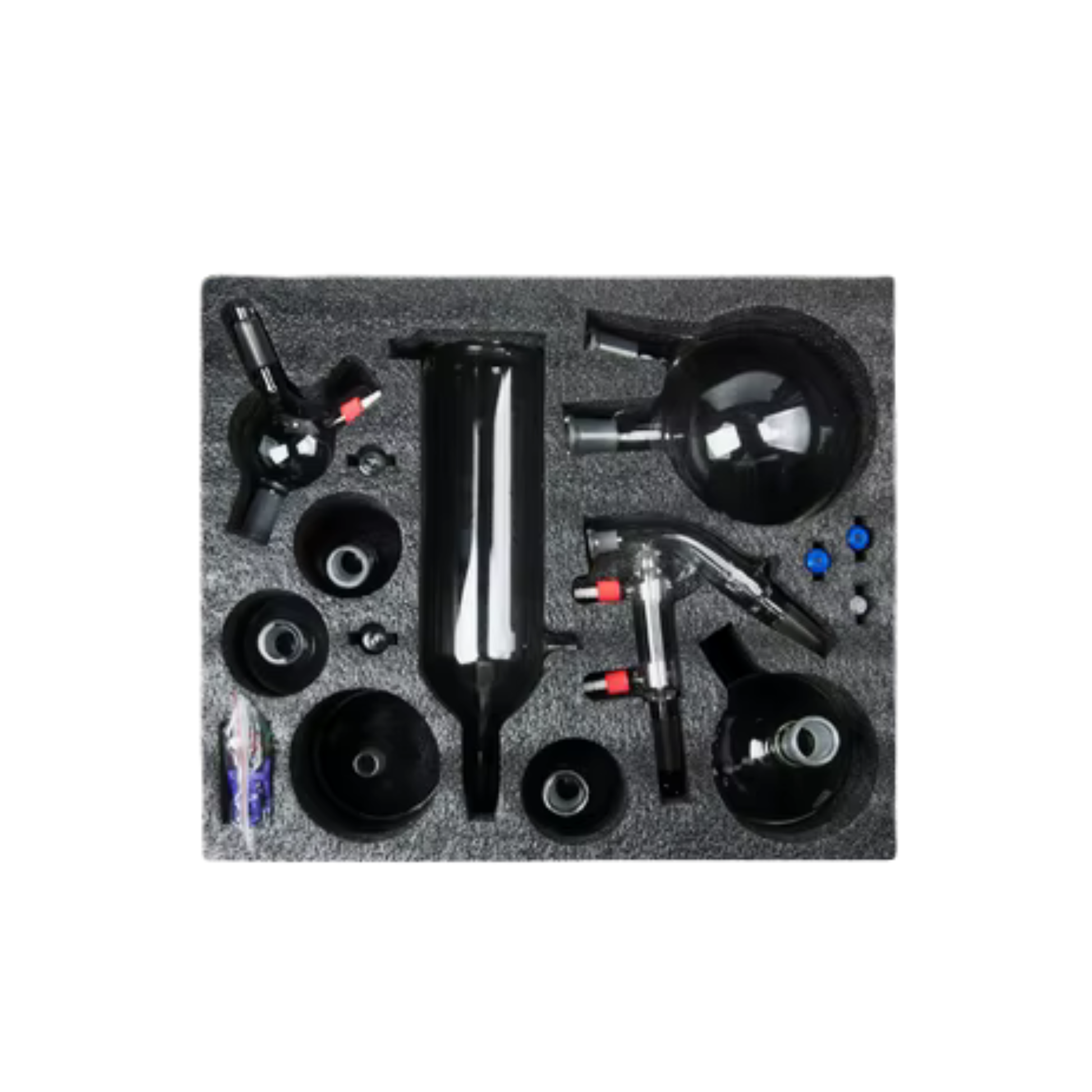

  • 5L short-path distillation borosilicate glass set showing cow receiver and connecting adapters

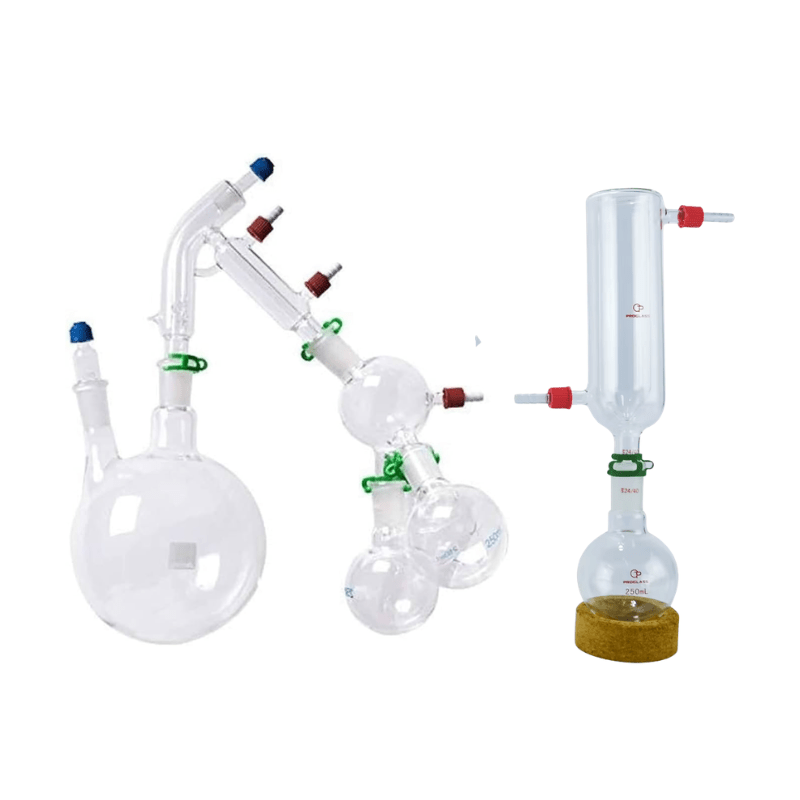

Short Path Distillation Glassware only - 5L Glassware set

CH-SHP-5000-GL

  • Borosilicate

Vendor: SmartLabs

Suited For:

Country of Origin:

Low stock! Only 2 left
R 9,200.00
R 9,200.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

JOANLAB 5L Short Path Distillation Glassware Kit, a specialized apparatus used for high-efficiency liquid purification and botanical oil extraction. This professional-grade set is made from borosilicate 3.3 glass, which is highly resistant to chemical corrosion and extreme thermal shock.

Key Features
  • Short Path Distillation Head: The primary component designed with a short vapor path to reduce product loss and degradation of heat-sensitive materials.
  • Cold Trap: Used to collect volatile vapors and protect vacuum pumps from contamination.
  • Round Bottom Flasks: 5L with standard 24/40 ground glass joints for secure, leak-proof assembly.
  • Adapters: Includes vacuum take-off adapters and thermometer inlet adapters for precise experimental control.
  • Accessories: Typically packed with plastic Keck clips to secure joints, cork rings for flask stability, and tubing connectors.
Key Kit Components
  • 24/40 5000ml 2neck Round Bottom Flask Qty 1
  • Distillation Head Qty 1
  • 14/20 Stopper Qty 1
  • 24/40 Thermometer Adapter Qty 1
  • 250ml Cow Receiver with GL-14 Qty 3
  • 24/40 250ml/500ml Round Bottom Flask Qty 3
  • 50/40 Cold Trap with GL-14 Qty 1
  • 50/40 1000ml Receiving Flask Qty 1
  • GL-14 Qty 5
  • #24 Metal Clips/1x #24 Metal Clips+1x#29  Metal Clips Qty 2
  • #24 Plastic Clips Qty 4

Corl ring not included.
