• Spiral Condenser

Spiral Condenser

IN62580-K

  • Lab and Research

Vendor: SmartLabs

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 3 left
R 290.00
R 290.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
F
Freddie Beukes

It realy is a wonderful product.

Have a question about this product?

Send us a message and we'll get back to you.

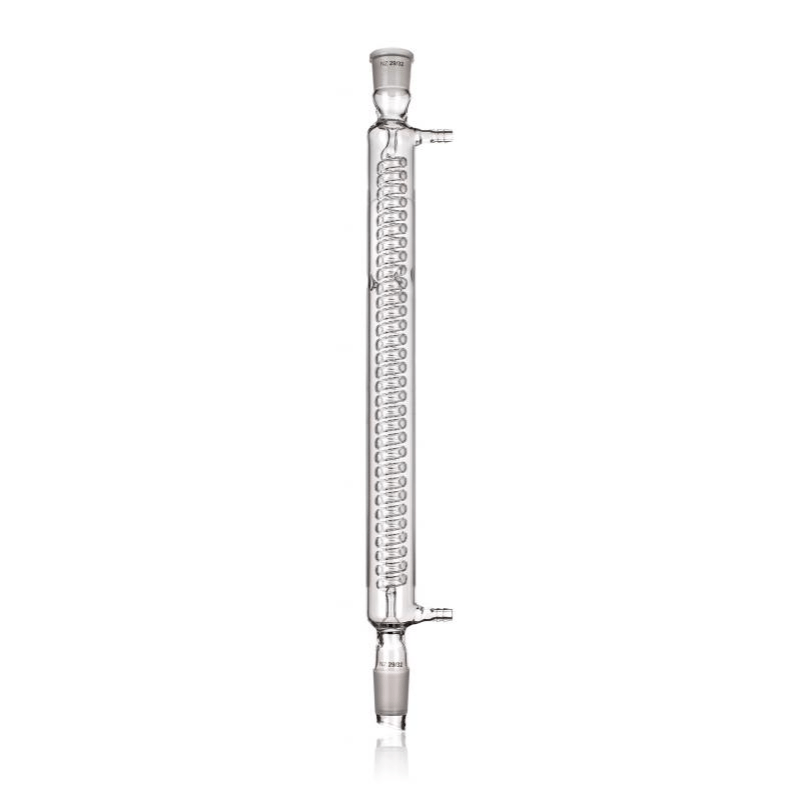

A spiral condenser (Graham condenser) is used to cool and condense a gas back into a liquid, often as part of chemical distillation. It consists of a coiled glass tube through which the gas travels, surrounded by a water jacket that cools the gas. The main advantages of a spiral heat exchanger are its high overall heat transfer coefficient and compact size for a given heat exchange area.

It's recommended for low-viscosity distillation processes such as alcohol, with the best results when assembled in a vertical orientation.

Design: features a central spiral glass coil inside an outer jacket. The large surface area of the coil optimises heat exchange.

Joints: precision-ground interchangeable ground glass joints ensure a vacuum-tight fit.

Usage best practices: always connect the water inlet to the lower glass connector and the outlet to the upper connector, so the jacket stays completely filled with coolant for maximum efficiency. For low-viscosity processes like alcohol distillation, use the condenser in a vertical orientation. These are autoclavable, but make sure all tubing is removed and joints aren't seized before sterilising.

Specifications

  • Material: Clear 3.3 borosilicate glass
  • Joint Size: select from drop down
  • Length: select from drop down (effective length in mm)
  • Tube Connector: glass thread connector
  • Stem: stem with drip tip
  • Brand: OMSONS
  • Product of India

Specifications

Material: Clear 3.3 Borosilicate Glass
