• Splash Head, Pear Shape, Vertical

Splash Head, Pear Shape, Vertical

SPHP2429

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 6 left
R 184.46
R 184.46
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

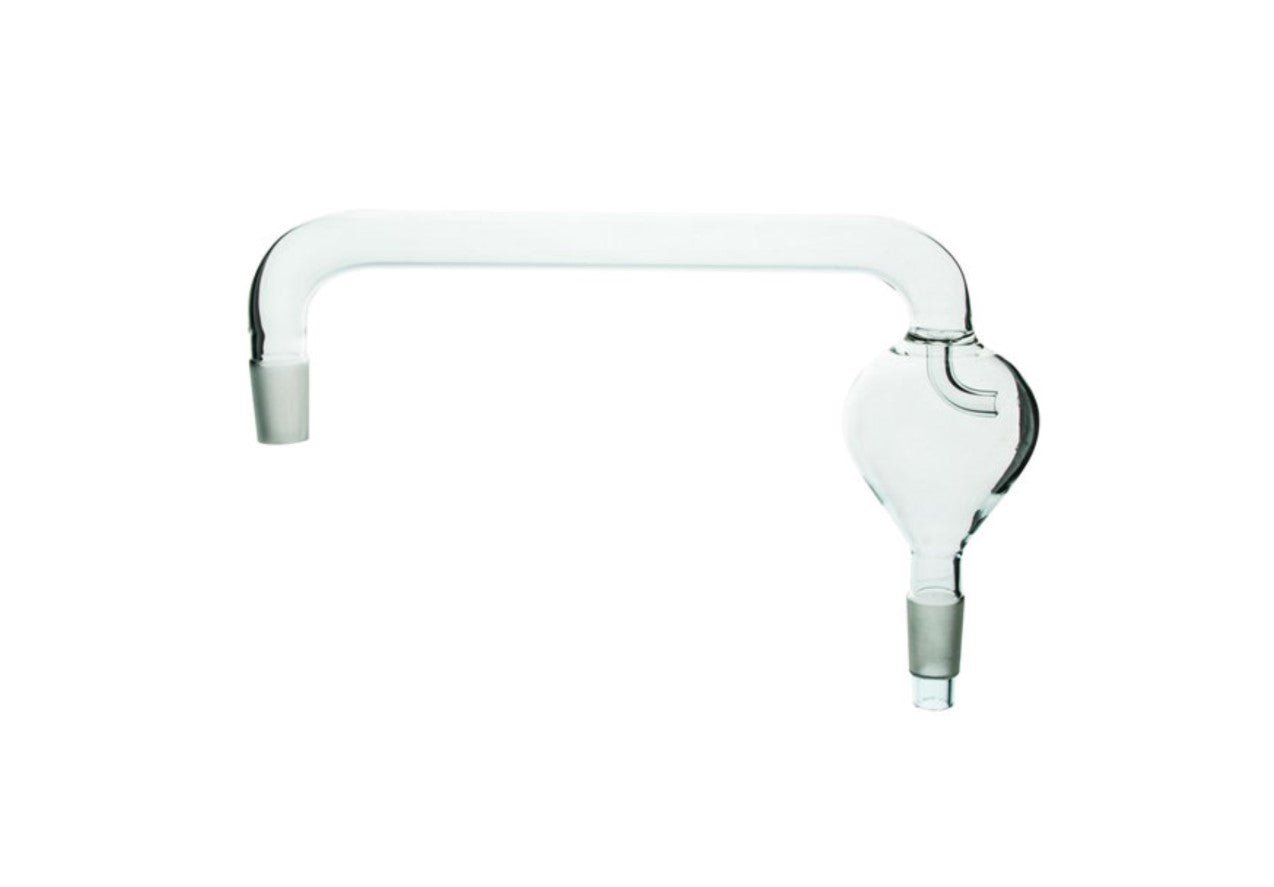

The image you provided shows a Vertical Pear Shape Splash Head (also known as a recovery bend with a splash head), which is an essential component in laboratory distillation assemblies.

Primary Functions and Use
  • Preventing Carryover: Its main purpose is to act as a buffer between a boiling flask and a condenser. The bulbous pear shape reduces the velocity of rising vapors, allowing any accidentally splashed liquid droplets to fall back into the boiling flask rather than contaminating the distillate.
  • Vertical Distillation: It is specifically designed for setups where the condenser is oriented vertically (often using spiral condensers).
  • Gas Processing: Beyond simple distillation, the shape is used for gas washing, absorption, and liquid distribution, as the internal volume promotes better mixing and contact between gases and liquids.
  • Increased Reflux: The large internal surface area of the pear bulb can promote natural reflux, where vapors condense early and return to the flask, leading to a higher purity final product.
Key Specifications & Features
  • Function: It is designed to be placed between a distillation flask and a vertical condenser. The pear-shaped bulb acts as a buffer to prevent liquid carryover (splashing) from the boiling flask into the condenser, ensuring only pure vapor is transferred.
  • Material: Manufactured from high-quality 3.3 Borosilicate Glass, which offers superior chemical resistance and can withstand high temperatures and thermal shocks.
  • Design:
    • Vertical Pear Shape: Encourages efficient mixing and separation of vapors.
    • Joints: Typically features two male ground glass cones. Common standard taper sizes include 19/26, 24/29, or 29/32.
    • Internal Tube: A vertical tube extends into the pear-shaped bulb to direct vapor flow while trapping accidental liquid splashes.

Specifications

  • Material: Clear 3.3 Borosilicate Glass
  • Joint Size: Select from drop down
  • Brand: OMSONS
  • Product of India

Specifications

Material: Borosilicate 3.3 Glass
Joint Sizes: 19/26, 24/29, or 29/32
