• Stereo Binocular LED Microscope

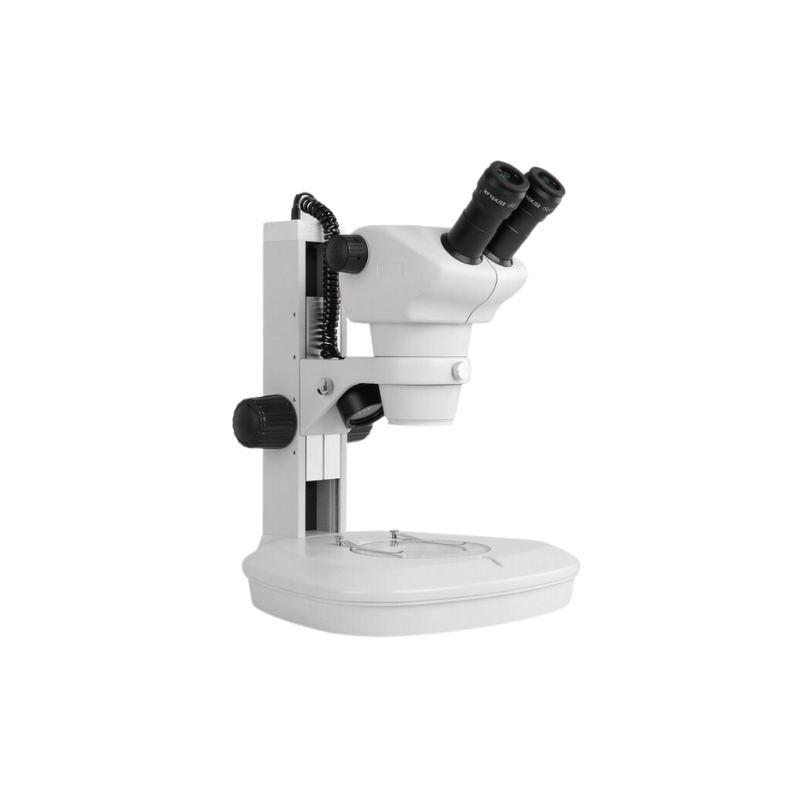

Stereo Binocular LED Microscope

NM23-1501-B2

Vendor: SmartLabs

Suited For: Lab and Research

Country of Origin: China

1 Year Warranty
Out of stock
R 14,538.99
R 14,538.99
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

Stereo Binocular LED Microscope

Stereo Microscope with WF10x/22mm eyepieces and 0.8~5x zoom lenses that allows for a total magnification of up to 50x magnification. Super wide field plan eyepiece WF10x/22mm with dioptre adjustable. Large track and stand with fan shape stage with integrated Up/Bottom LED light. Fan shape stage.

Specification



  • Head: Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary Range 52mm~75mm
  • Magnification: 8x~50x
  • Eyepiece: WF10x/22mm, Diopter Adjustment - 8~+5°
  • Zoom Lens: 0.8~5.0x
  • Zoom Ratio: 1:6.5
  • Zoom Knob: Zoom Knob with Click Stop At 1x,2x,3x,4x
  • Working Distance: 115mm, Up To 45~211mm With Auxiliary Objective
  • Focusing: Coarse Focusing Knob with Tension Adjustable, Focusing Range 100mm
  • Working Stage: Glass Plate Dia.125mm
  • Base & Light Source: Big Fan Base Track Stand, with LED light on the neck as well as the base of the microscope.

Downloads





Specifications

Optics
Type: Stereo zoom, binocular
Head: 45° inclined, rotates 360°, interpupillary range 52-75 mm
Eyepieces: Super wide field WF10x/22 mm with dioptre adjustment
Zoom lens: 0.8x to 5.0x, zoom ratio 1:6.5
Zoom knob: Click stops at 1x, 2x, 3x and 4x
Total magnification: 8x to 50x
Working area
Working distance: 115 mm, or 45-211 mm with an auxiliary objective
Focus: Coarse knob with adjustable tension, 100 mm range
Stage: Glass plate, 125 mm diameter
Light
Base: Large fan-shaped track stand with LED lights on the neck and in the base

Common Uses

PCB rework and electronics assembly inspection
Gemmology and fine bench inspection

Frequently Asked Questions

Is this a true zoom microscope?

Yes. The lens runs smoothly from 0.8x to 5x, so you can follow a detail in and out instead of jumping between fixed steps. Click stops at 1x, 2x, 3x and 4x help you return to a known magnification.

How much room is there under the lens?

115 mm as standard, and 45 to 211 mm with an auxiliary objective. That's enough for a soldering iron, a specimen tray or a small assembly jig.

What is the glass stage plate for?

It lets light from the base shine up through the specimen. Swap to the top light for solid objects.

What magnification does it reach?

8x to 50x, using the WF10x/22 mm eyepieces with the 0.8-5x zoom.
