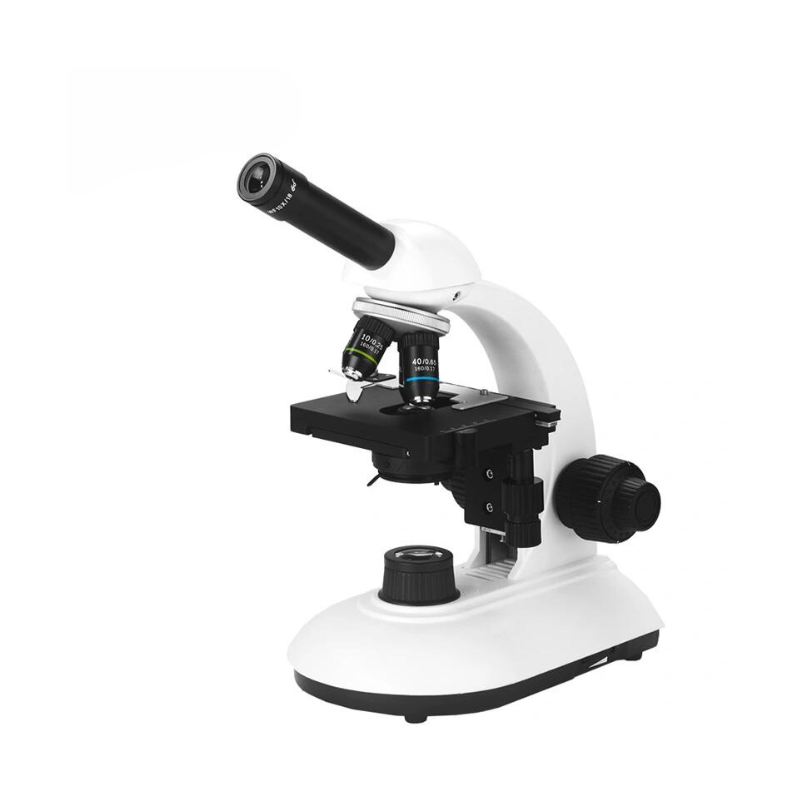

Student Biological Microscope - Monocular

NM-2601-M

Vendor: SmartLabs

Suited For: Education

Country of Origin: China

1 Year Warranty
Low stock! Only 2 left
R 7,250.00
R 7,250.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

Advanced student biological microscope with a wide field eyepiece WF10x/18mm, high contrast Plan Objective 4x,10x,40x,100x (Plan objectives have a flat field about the center 95% of the image), double layers mechanical stage measuring 115x125mm with a moving range of 70x35mm that is constructed out of a full metal body construction with a high rigidity for a longer work life. Powered by a 3W LED for additional mobility and off-grid use (Support Power Bank Supply Input Wide Voltage 100V-240V, Output 5V1A, power bank not included).

A plan (or planar) objective corrects better for color and spherical aberration than either the semi-plan or the achromatic objective. Plan objectives have a flat field about the center 95% of the image. While plan objectives give you flatter fields than achromatic objectives, they also have a higher price.

Specification

  • Head: Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48 - 75mm, Light Split Fixed P20/E80
  • Eyepiece: WF10x/18mm
  • Nosepiece: Quadruple, Backward
  • Plan Objective: 4x, 10x, 40x, 100x (differs from Monocular unit)
  • Double layers mechanical stage
  • Stage Size: Double Layer Mechanical Size 125 × 115mm,
  • Stage moving range: Travel Range 35 × 75mm
  • Condenser: Abbe N.A. 1.25(Iris Diaphragm)
  • Coaxial Coarse And Fine Focusing Knobs, Travel Range: 22mm, Scale: 2µm
  • Light Source: 3W LED Illumination Systems

Download

Specifications

Optics
Eyepiece: WF10x/18 mm
Nosepiece: Quadruple, backward facing
Objectives: Plan 4x, 10x, 40x, 100x
Total magnification: 40x, 100x, 400x, 1000x
Condenser: Abbe N.A. 1.25 with iris diaphragm
Stage and focus
Stage: Double-layer mechanical, 125 x 115 mm, travel 35 x 75 mm
Focus: Coaxial coarse and fine, 22 mm travel, 2 µm scale
Build and power
Body: Full metal
Light: 3 W LED
Power: 100-240 V mains, or a 5 V 1 A power bank (not included)

Common Uses

CAPS, IEB and Cambridge IGCSE/AS-Level Life Sciences practicals (Grade 10-12)
Senior-phase and matric exam-practical use

Frequently Asked Questions

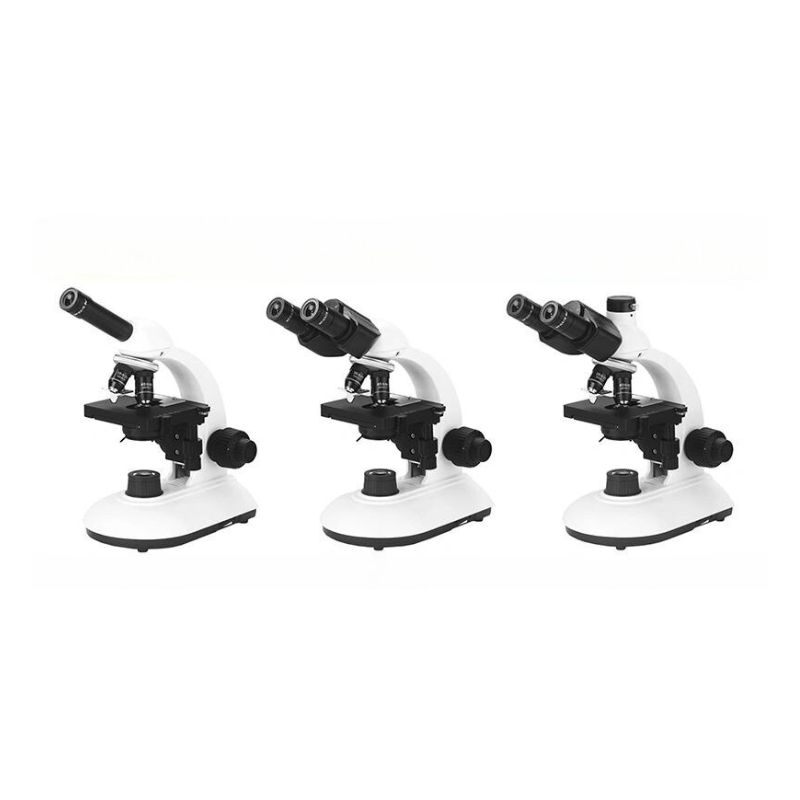

How is it different from the binocular and trinocular versions?

The optics, stage and metal body are shared across all three. This is the single-eyepiece version and the most affordable of the three.

What does the full metal body change?

Weight and rigidity. A heavier frame vibrates less at 1000x, and it survives being moved around a school lab year after year.

Are plan objectives worth it?

They keep the edges of the view in focus, not just the middle. Learners spend less time re-centring the slide, and photographs come out sharper across the frame.
