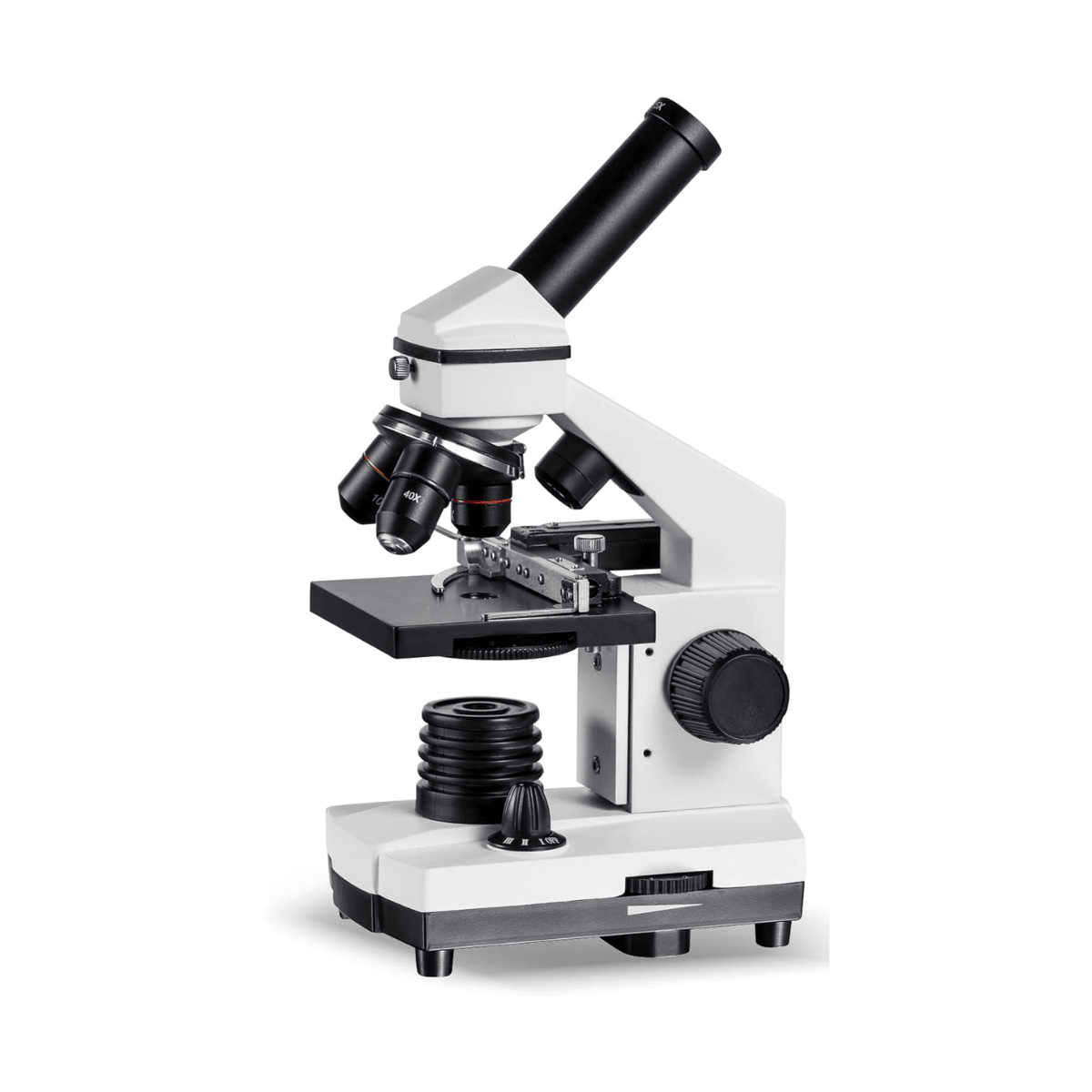

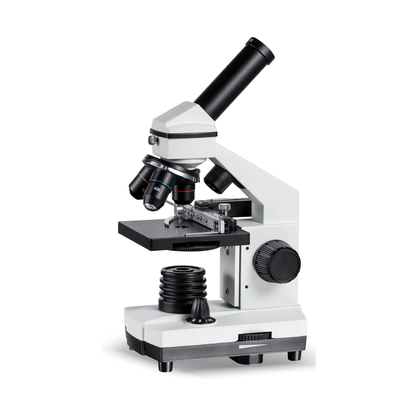

• Monocular student microscope with 360 degree rotating head, three objectives and mechanical stage with vernier scales

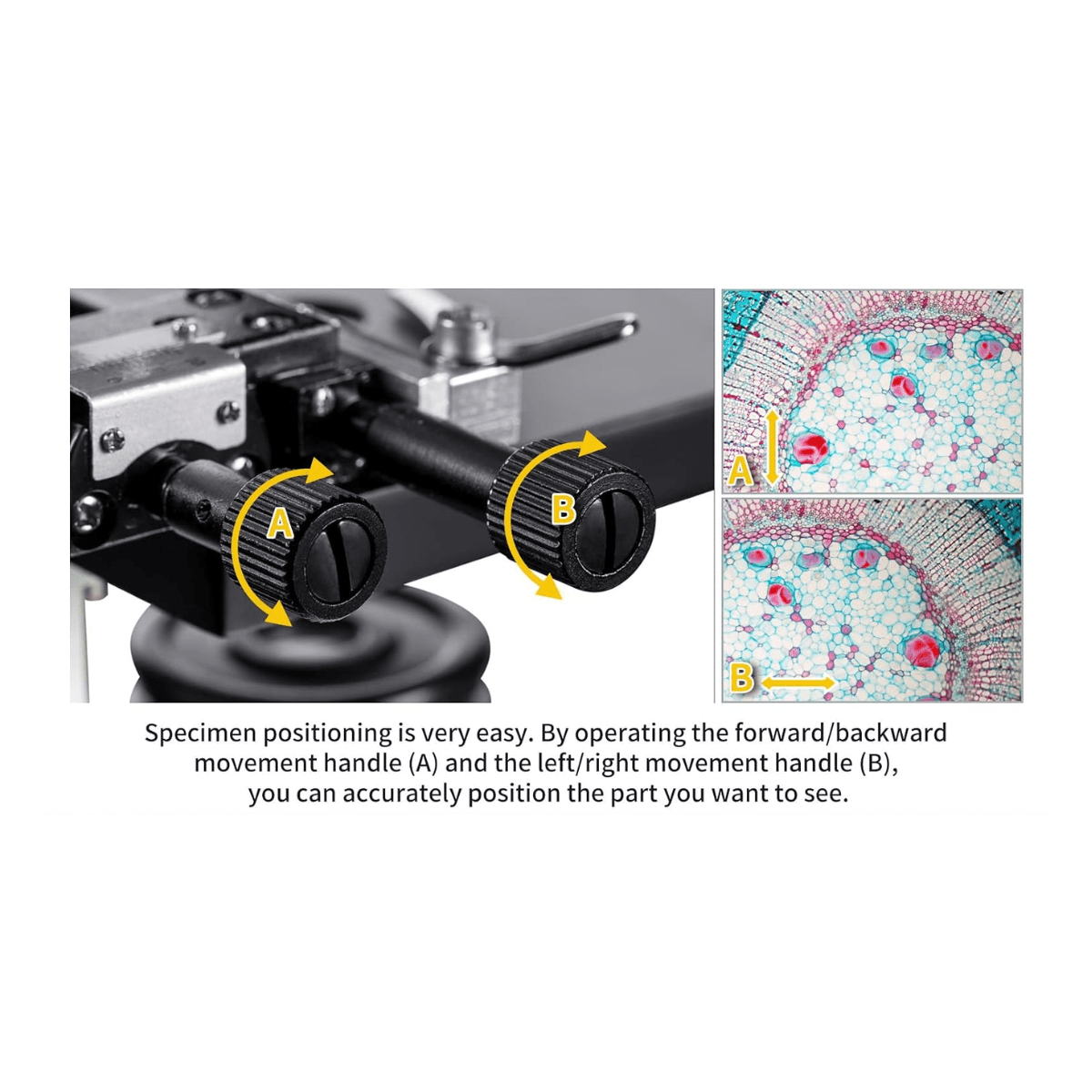

  • Mechanical stage knobs moving a stained plant stem slide forwards, backwards and side to side

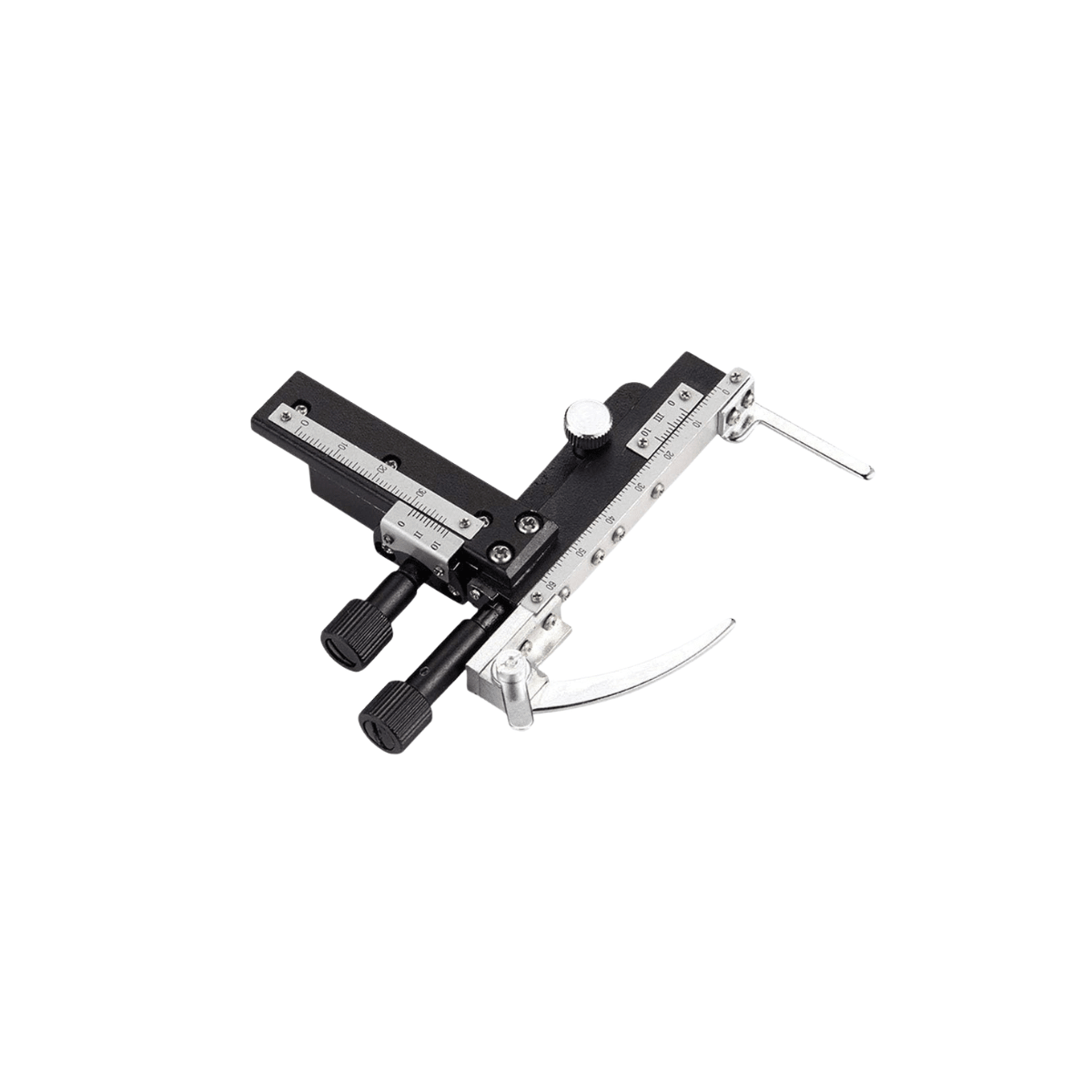

  • Detached double-layer mechanical stage attachment with slide clip arm and X-Y control knobs

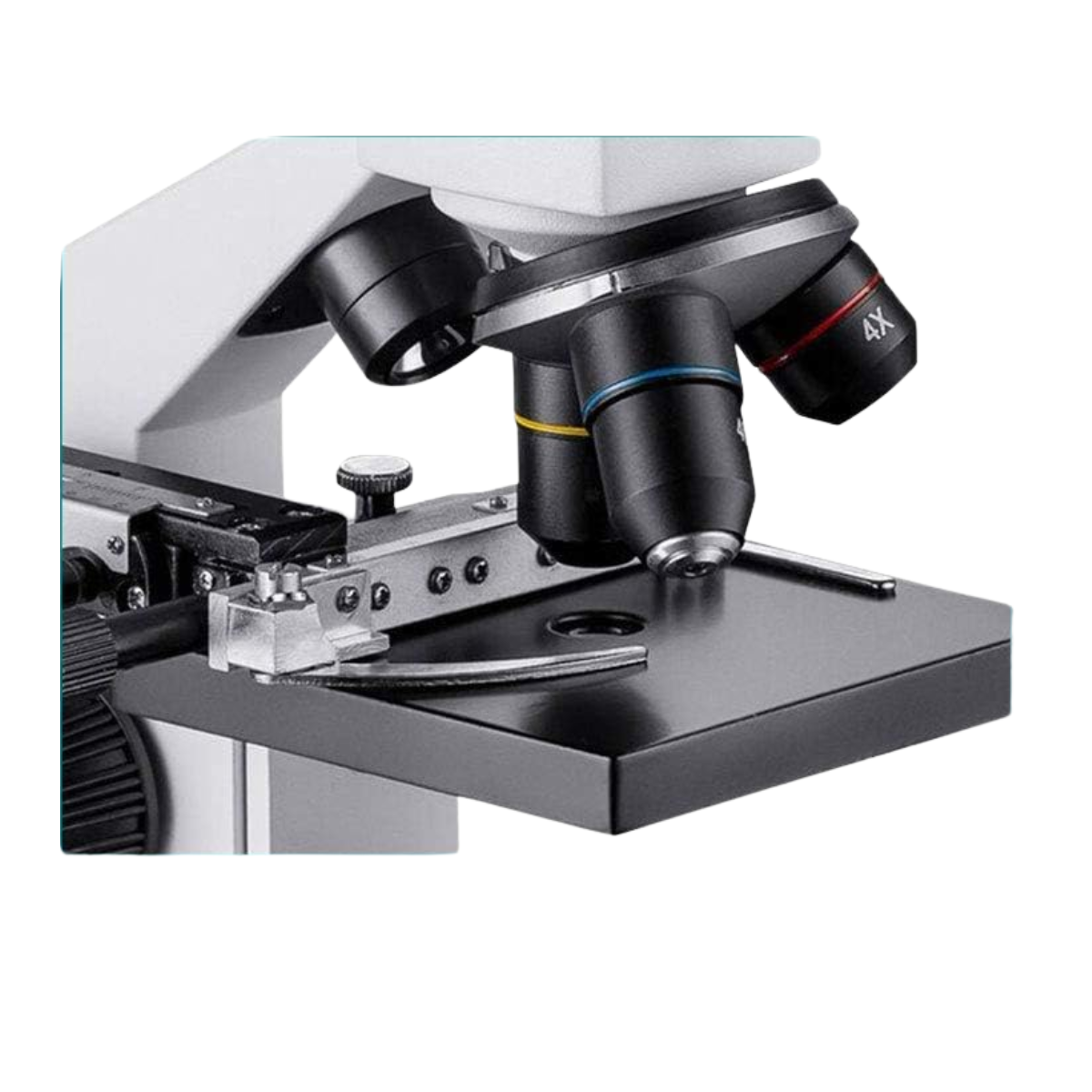

  • Close-up of the 4x objective above a mechanical stage holding a glass slide

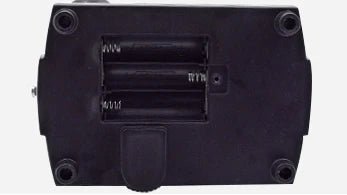

  • Battery compartment under a student microscope base holding three AA batteries

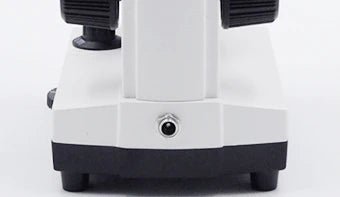

  • Back of a student microscope base showing the DC power adapter socket

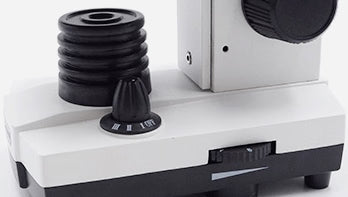

  • Coarse focus knob, condenser and brightness dial on the base of a student microscope

Student Microscope 40X-400X - Mechanical Stage

NM-42-MS

Vendor: SmartLabs

Suited For: Education

Country of Origin: China

1 Year Warranty
50 in stock
R 2,500.00
R 2,500.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

This student microscope (40x to 400x) with a mechanical stage is a popular compound biological microscope for education and hobby use. It has dual LED lighting for transmitted and reflected light, a fully working mechanical stage with vernier scales for precise slide movement, and a rotating monocular head, so users can explore a wide range of biological specimens with good stability and precision.

The microscope magnifies slides up to 400x and has two light sources: one LED in the base and one in the neck. It runs on the included AC adapter or three 1.5V batteries (not included), so students can use it in the field. A must-have for any student interested in microscopy.

The main benefit of a double-layer mechanical stage over a simple stage with clips is precise, controlled movement of your slide. X-Y coaxial knobs glide the slide left and right or forward and back, so you can make tiny adjustments without losing your field of view. A spring-loaded arm holds the slide firmly, which prevents finger smudges and dropped slides.

Specifications

  • Head: Monocular, 45° inclined, rotatable 360°
  • Total magnification: 40x, 100x & 400x
  • Eyepiece: 10x
  • Objectives: 4x, 10x, 40x
  • Coarse adjustment range: 8mm
  • Working stage: Double-layer mechanical stage
  • Moving range: 40 x 60mm, X-Y dual-direction adjustment
  • Condenser: NA 0.65 Abbe condenser
  • Illumination: LED lights top and bottom
  • Power: 3 x 1.5V batteries or AC adapter
  • Brand: Not branded
  • Product of China

Downloads

Specifications

Optics
Type: Compound biological
Head: Monocular, 45° inclined, rotates 360°
Eyepiece: 10x
Objectives: 4x, 10x, 40x
Total magnification: 40x, 100x, 400x
Condenser: Abbe N.A. 0.65
Stage and focus
Stage: Double-layer mechanical with vernier scales, moving range 40 x 60 mm, X-Y control
Focus: Coarse adjustment range 8 mm
Light and power
Illumination: LED top and bottom
Power: 3 x 1.5 V batteries or AC adapter (included)
Country of origin: China

Frequently Asked Questions

What do the vernier scales on the stage do?

They number the slide position, so a learner can write down where something is and find it again in the next lesson.

How is it different from the plain-stage student microscope?

Same 400x optics. This one adds the mechanical stage, so the slide moves on knobs instead of by hand under clips.

Does it work during a power cut?

Yes, on three 1.5 V batteries. The AC adapter is in the box for normal use.

What can it look at besides slides?

The top LED lights solid objects, so leaves, fabric, insects and coins all work.
