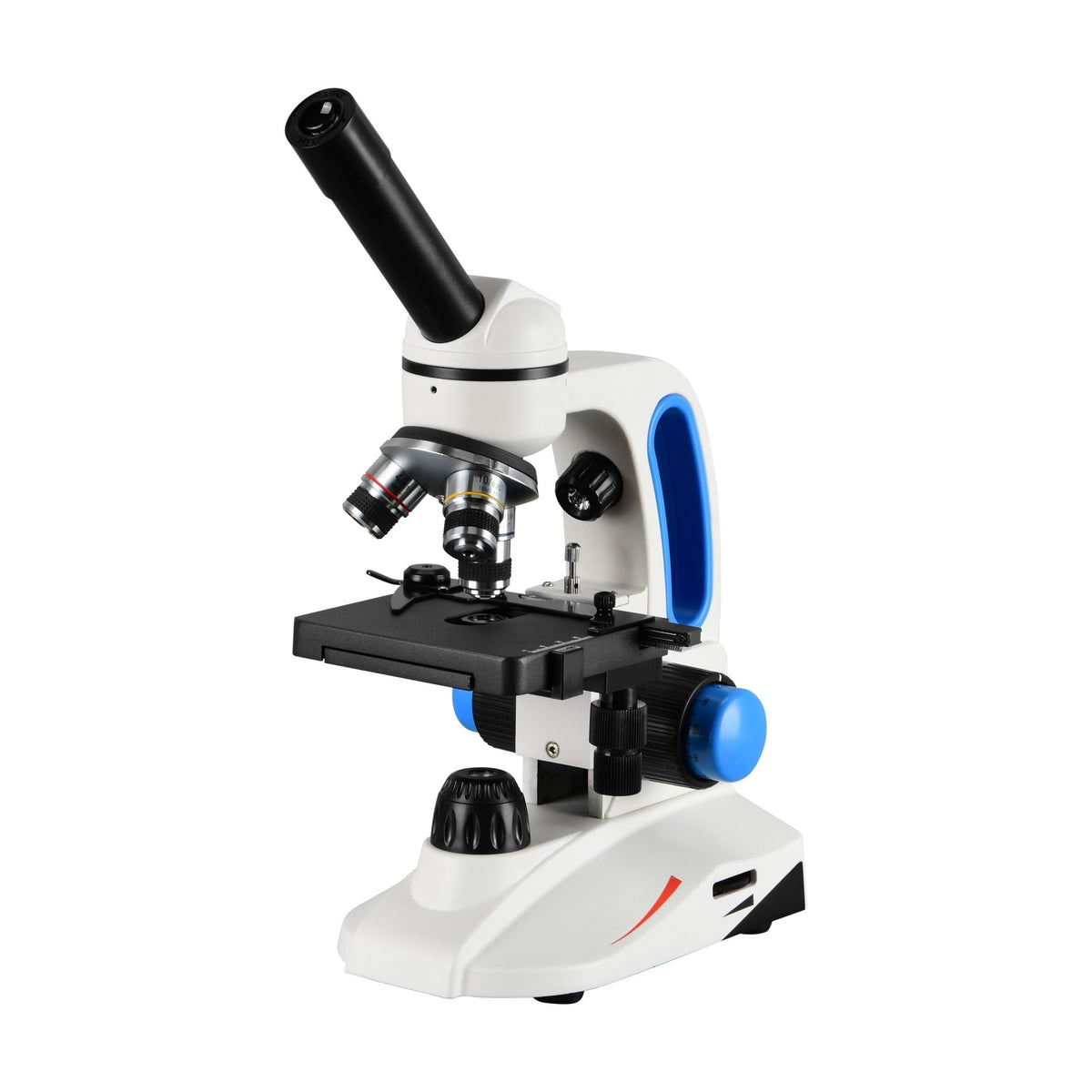

• White monocular student microscope with blue carry handle, mechanical stage and blue focus knobs

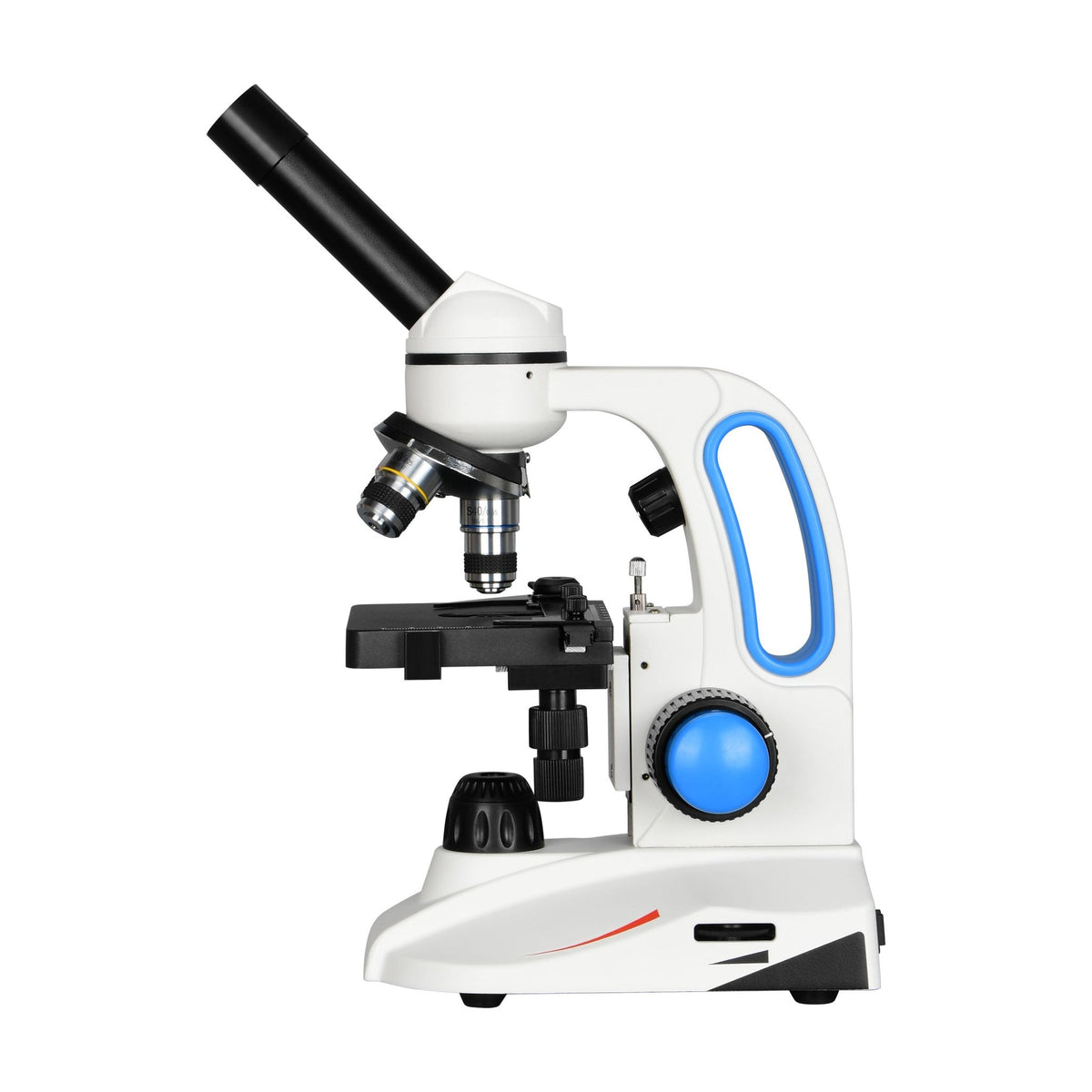

  • Side view of a monocular student microscope showing the built-in blue carry handle and coarse focus knob

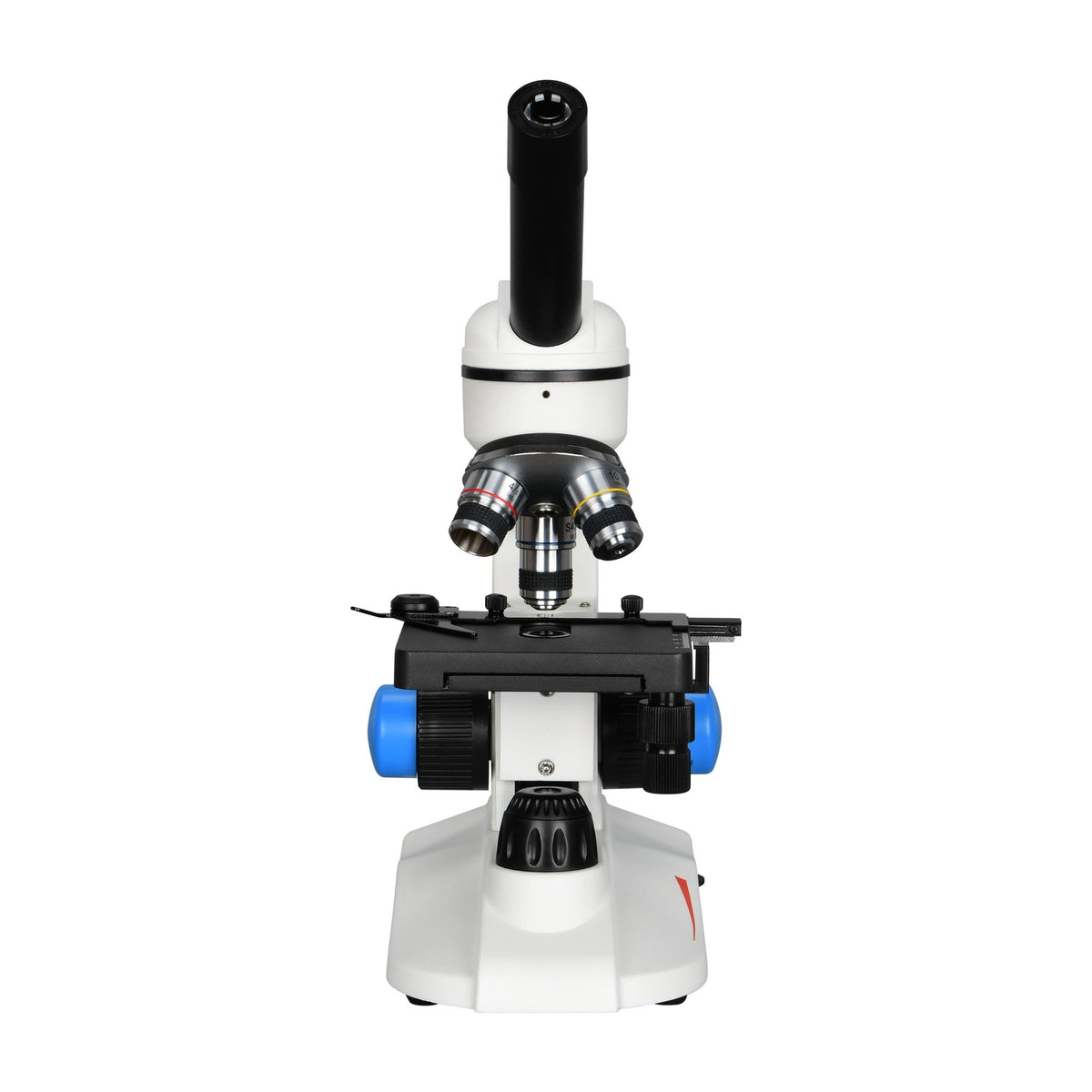

  • Front view of a monocular student microscope with three objectives, mechanical stage and bottom LED light

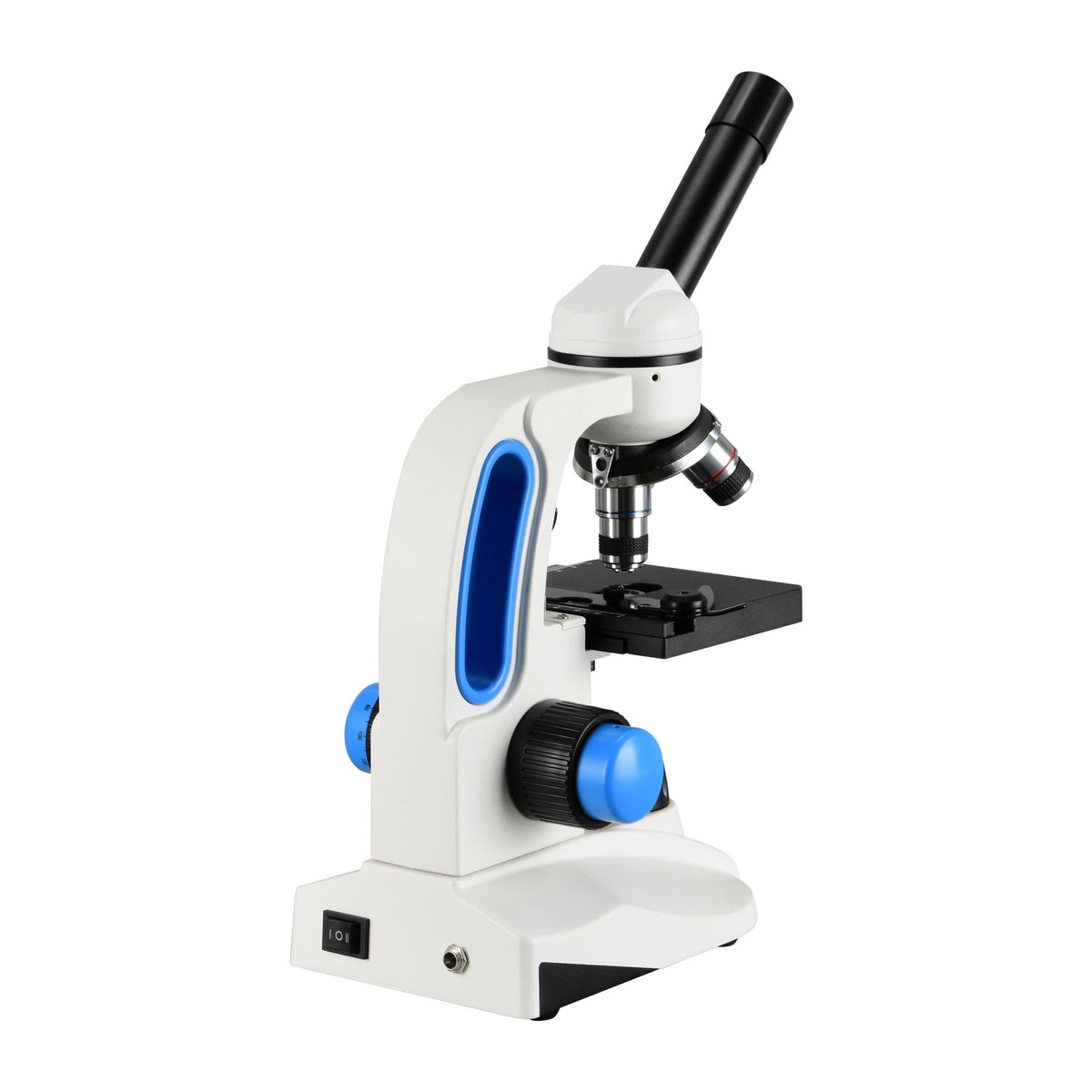

  • Rear view of a student microscope showing the carry handle, power switch and adapter socket

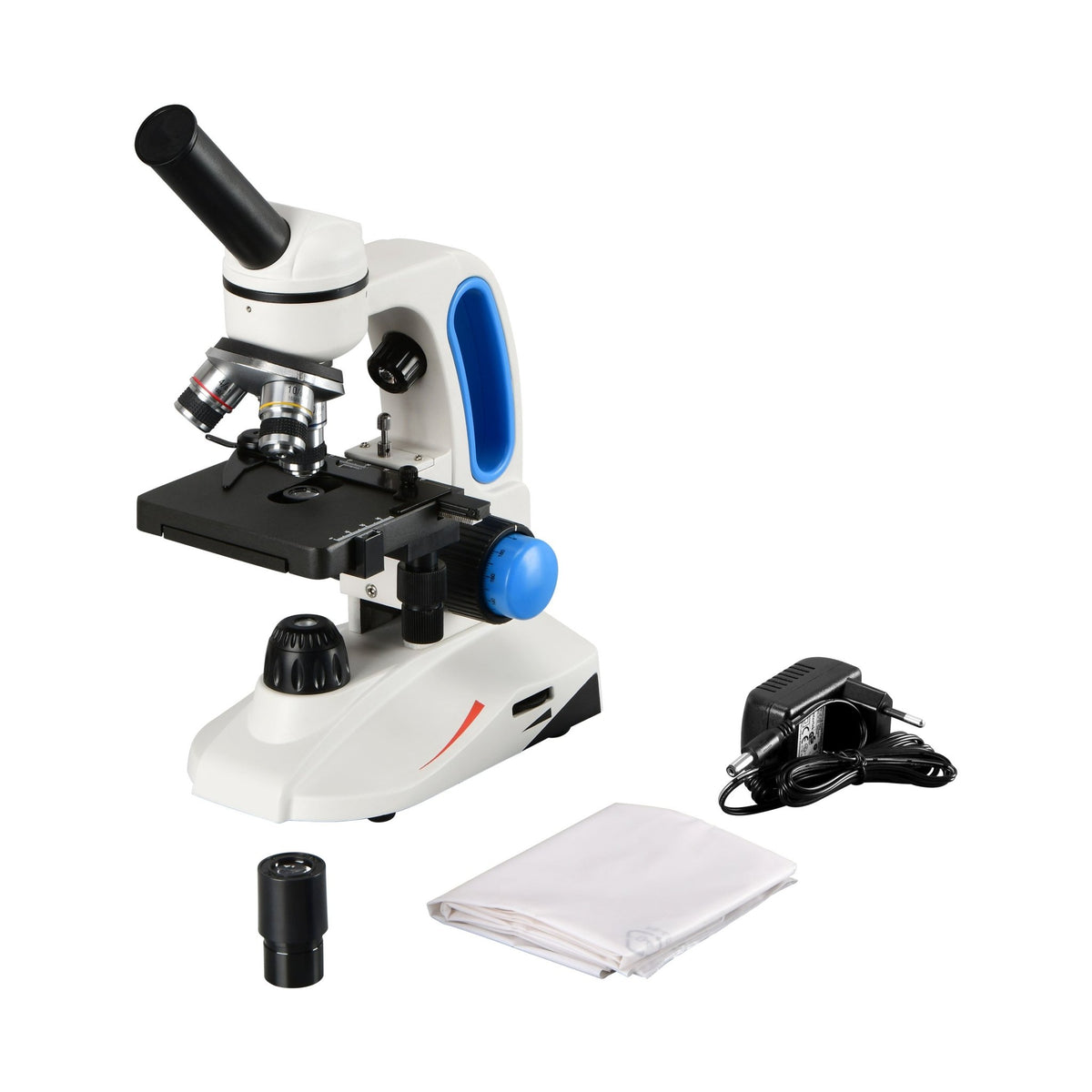

  • Monocular student microscope shown with power adapter, spare eyepiece and white dust cover

Student Microscope 400X, Mechanical Stage, Fine Adjustment

NM-B304M

Vendor: SmartLabs

Suited For: Education

Country of Origin: China

1 Year Warranty
50 in stock
R 2,999.00
R 2,999.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

This student microscope (40x to 400x) has a mechanical stage with fine adjustment and is designed for young scientists, students and hobbyists. The monocular compound biological microscope pairs good optics with a durable, easy-to-use design, including a built-in carrying handle and dual LED lighting, so it works well for classroom learning and home science experiments.

A mechanical stage holds the specimen slide securely and moves it smoothly along the X-axis (left to right) and Y-axis (forward and back) using control knobs. At higher power (like 40x or 100x), even a tiny nudge from your finger can push the specimen right out of view. The mechanical knobs allow very small movements, so you don't lose your subject.

Key Features

  • Dual LED lighting: Built-in top (reflected) and bottom (transmitted) LED lights let you view both translucent biological slides and solid objects like leaves or coins.
  • Easy to carry: A carrying handle built into the arm makes it safe and easy for younger users to move.
  • Optical glass lenses: Achromatic glass lenses give clear, sharp, colour-corrected images.
  • Flexible power: Runs on a standard power adapter or cordless battery power, so it's portable enough for field study.
  • Mechanical stage: Holds the slide securely and moves it along the X and Y axes with control knobs.

Specifications

  • Microscope type: Compound biological microscope
  • Head type: Monocular, inclined at a comfortable viewing angle
  • Magnification range: 40x to 400x
  • Eyepiece: Wide-field WF10x glass eyepiece
  • Objective lenses: Achromatic 4x, 10x and 40x (spring) in a revolving nosepiece
  • Focusing: Coaxial coarse and fine adjustment knobs with tension control
  • Stage: Double-layer mechanical stage, 95 x 105mm
  • Light source: Dual LED (top and bottom) with brightness adjustment
  • Power supply: 240V AC adapter (included) or 3 x AA batteries (not included)
  • Frame material: Rugged, impact-resistant metal and polymer body
  • Country of origin: China

Downloads

Specifications

Optics
Type: Compound biological
Head: Monocular, inclined
Eyepiece: Wide field WF 10x
Objectives: Achromatic 4x, 10x, 40x (spring), in a revolving nosepiece
Magnification: 40x to 400x
Stage and focus
Stage: Double-layer mechanical, 95 x 105 mm
Focus: Coaxial coarse and fine with tension control
Light and power
Illumination: Dual LED, top and bottom, adjustable brightness
Power: 240 V AC adapter or AA batteries
Build
Body: Impact-resistant composite metal and polymer, with a carry handle in the arm
Country of origin: China

Frequently Asked Questions

Why the handle in the arm?

So learners carry it properly. A microscope picked up by the head or the stage is a microscope that gets dropped.

What does the tension control on the focus do?

It sets how stiff the coarse knob feels, which stops the stage drifting down on its own between lessons.

Can it be used outside the classroom?

Yes. It runs on AA batteries as well as the 240 V adapter.

What can learners see at 400x?

Cheek cells, onion skin, prepared tissue slides and pond organisms. That covers most Natural Sciences and junior Life Sciences work.
