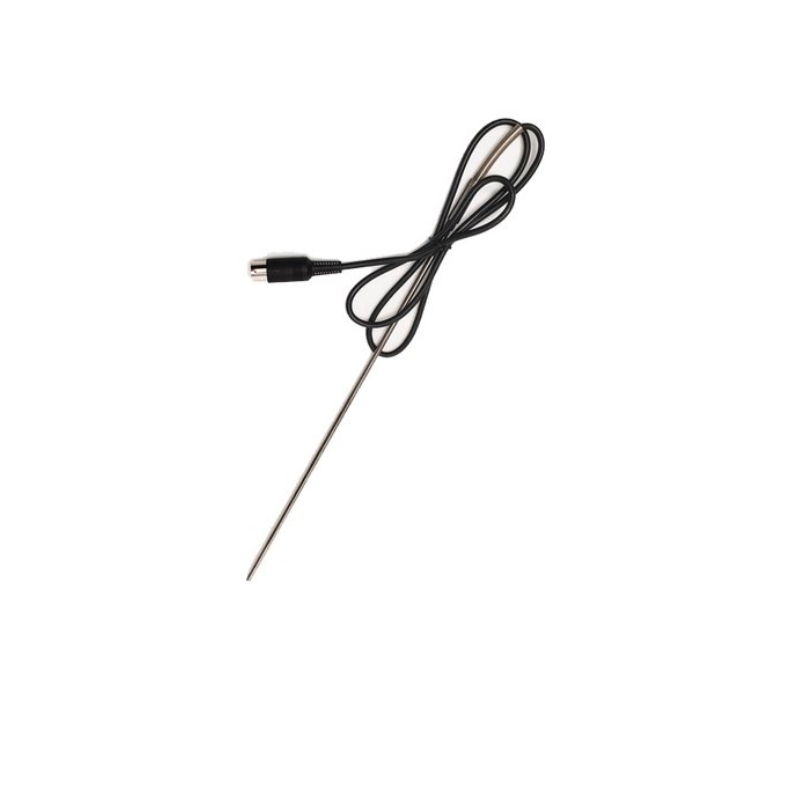

Temperature Probe of HS5C - Thermometer

This temperature probe for the Joanlab HS5C is an external sensor that works with the HS5C digital magnetic stirrer, so you can monitor the actual temperature of your liquid in real time rather than just the hot plate temperature.

Technical Specifications

• Sensor type: PT1000 resistance temperature detector (RTD).
• Control range: Controls liquid temperatures up to 280°C (536°F).
• Accuracy: Display accuracy of ±0.1°C and control accuracy of ±1°C.
• Material: A stainless steel probe body for chemical resistance and durability.

Installation and Use

1. Connect: Plug the probe into the external sensor port on the back of the HS5C.
2. Mount: Use the stainless steel bracket and clamp stand to hold the probe securely in your beaker or flask.
3. Position: Make sure the tip is at least 20mm into the liquid and 5 to 10mm away from the bottom and sides of the vessel, so the hot plate doesn't give false readings.
4. Automatic detection: Once connected, the display usually switches to show the actual temperature from the probe (often shown by a "PROBE" LED or icon).
