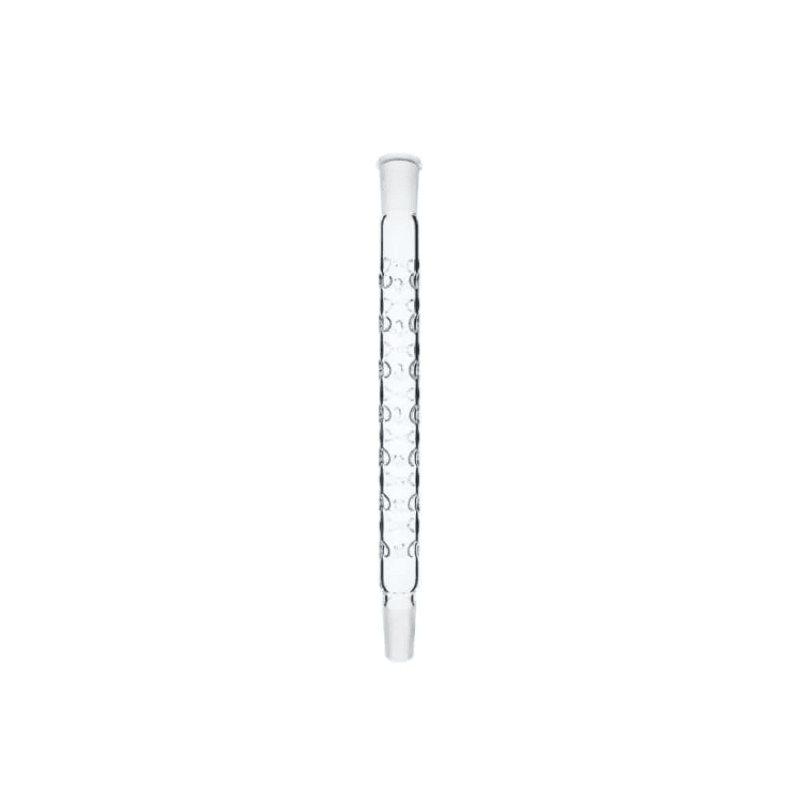

• Vigreux Distillation Column (a "Thorn" or "Hammer - Stab" tube)

Vigreux Distillation Column (a "Thorn" or "Hammer-Stab" tube)

CNW-5048-200/19/18

  • Borosilicate

Vendor: SmartLabs

Suited For:

Country of Origin:

Low stock! Only 3 left
R 185.00
R 185.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

A Vigreux Distillation Column (often termed a "Thorn" or "Hammer-Stab" tube). It is a specialized piece of fractional distillation glassware characterized by multiple internal indentations (the "thorns") that significantly increase the surface area for vapor-liquid contact.

Key Performance Features
  • Increased Theoretical Plates: The "thorns" allow for multiple cycles of evaporation and condensation within a single column, providing much sharper separation than a simple glass tube.
  • Low Hold-up: Unlike packed columns (filled with beads), the Vigreux design has a low liquid hold-up, making it ideal for distilling small quantities of material.
  • Airtight Connections: Precision-ground joints ensure compatibility with other components like distilling heads and condensers.

Specifications:

  • Material: 3.3 Borosilicate glass
  • Design: Straight shape
  • Neck: Ground glass joint (socket)
  • Joint Sizes: 19/26, 24/29, 29/32 (Select an option)
  • Jacket Lengths: 200mm to 500mm (Select an option)
  • Brand: NONE
  • Product of China
Effective Length (mm)  Standard Joint Size Application
100 – 150 mm 14/23 or 19/26 Micro-scale or compact lab setups.
200 – 300 mm 19/26 or 24/29 Standard research-grade distillation.
400 – 500 mm 24/29 or 29/32 High-efficiency industrial or analytical separation.



Delivery

We deliver nationwide across South Africa. Once your order is on its way, you'll receive a tracking link by email so you can follow its progress. If you need your order urgently or you're delivering somewhere hard to reach, contact our team before you check out and we'll help where we can.

Our Promise

At SmartLabs, we only stock equipment we'd trust in our own labs and classrooms. If a product arrives faulty or doesn't match its description, let us know and we'll make it right, whether that's a replacement or a refund. Our goal is for every order to work exactly as it should, the first time.
