Trinocular Microscope, 1000x Double Layer Stage

NM-103-10x

Vendor: SmartLabs

Country of Origin: China

1 Year Warranty
Out of stock
R 7,250.00
R 7,250.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

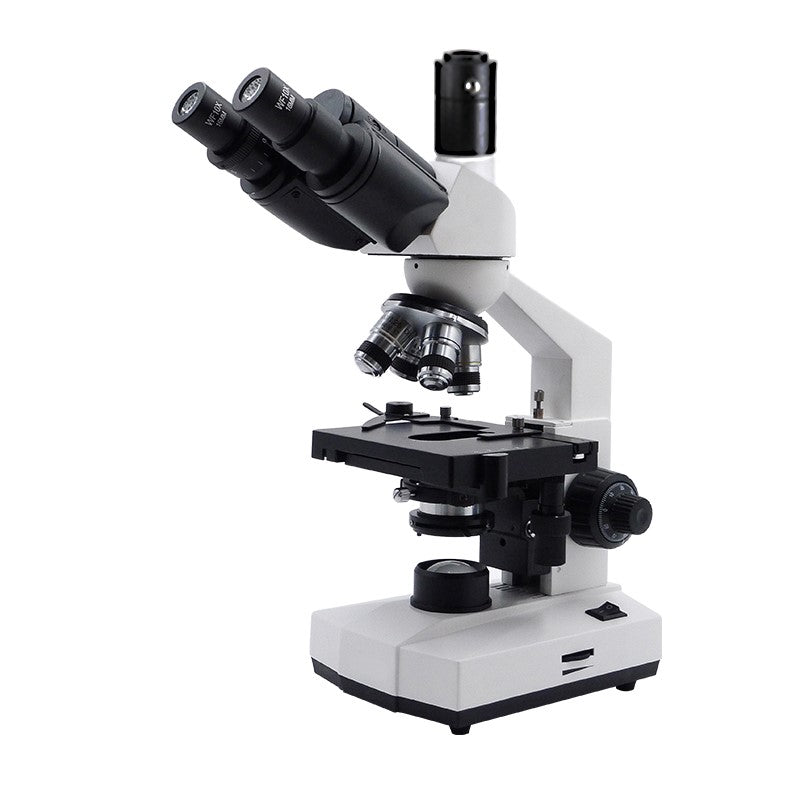

Trinocular Compound Light Microscope, 1000x Double Layer Stage

This general use microscope has a trinocular eyepiece head and a double layer mechanical stage, and uses a halogen lamp for illumination. It is fitted with four achromatic objectives, 4x, 10x, 40x and 100x (oil), for a total magnification of up to 1000x.

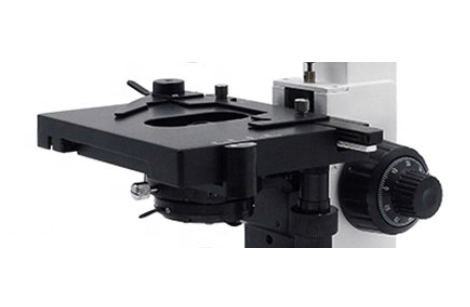

The double layer stage allows for ease of movement, and the coaxial coarse and fine adjustment has a focusing range of 20mm. A camera or digital screen can be added to the phototube.

Specification

  • Head: Trinocular Head, 30° Inclined, 360° Rotatable
  • Eyepiece: WF10x
  • Nosepiece: Quadruple Nosepiece
  • Objective: Achromatic 4x, 10x, 40x(s), 100x(s, oil)
  • Total Magnification: 40x, 100x, 400x, 1000x
  • Double layer mechanical stage, size: 115 x 125mm
  • Coaxial coarse and fine adjustment, focusing range 20mm
  • N.A 1.25 Abbe condenser & Iris diaphragm Filter
  • 6V 20W Halogen Lamp
  • AC Input 220V
  • Physical Dimensions: 36cm (H) x 19cm (W) x 13.5cm (L)

Specifications

Optics
Head: Trinocular, 30° inclined, rotates 360°
Eyepieces: WF10x
Nosepiece: Quadruple
Objectives: Achromatic 4x, 10x, 40x (spring), 100x (spring, oil)
Total magnification: 40x, 100x, 400x, 1000x
Camera port: Phototube for a microscope camera or digital screen
Stage and focus
Stage: Double-layer mechanical stage, 115 x 125 mm
Focus: Coaxial coarse and fine, 20 mm range

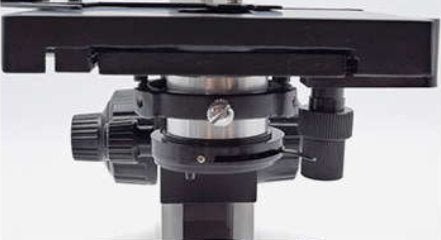

Condenser: Abbe N.A. 1.25 with iris diaphragm and filter
Power and size
Light: 6 V 20 W halogen lamp
Power: 220 V AC mains
Dimensions: 36 cm high x 19 cm wide x 13.5 cm deep

Common Uses

CAPS, IEB and Cambridge IGCSE/AS-Level Life Sciences practicals (Grade 10-12)
Teacher-led classroom demonstration via camera/projector

Frequently Asked Questions

What is the third tube on a trinocular microscope for?

It's a phototube. Fit a microscope camera or digital screen to it and you can photograph slides or put them up on a projector, while still looking through the eyepieces.

Does it come with a camera?

No, the camera is sold separately. Our microscope cameras and LCD screens fit the phototube.

How is it different from the Binocular 1000x microscope?

The optics are the same: identical objectives, stage, halogen light and 1000x maximum. The trinocular adds the camera port, so pick it if you want to show slides on a projector.

Do I need immersion oil?

Only for the 100x objective. The 4x, 10x and 40x lenses are used dry.
