• U - shaped drying tube, With Side Arms

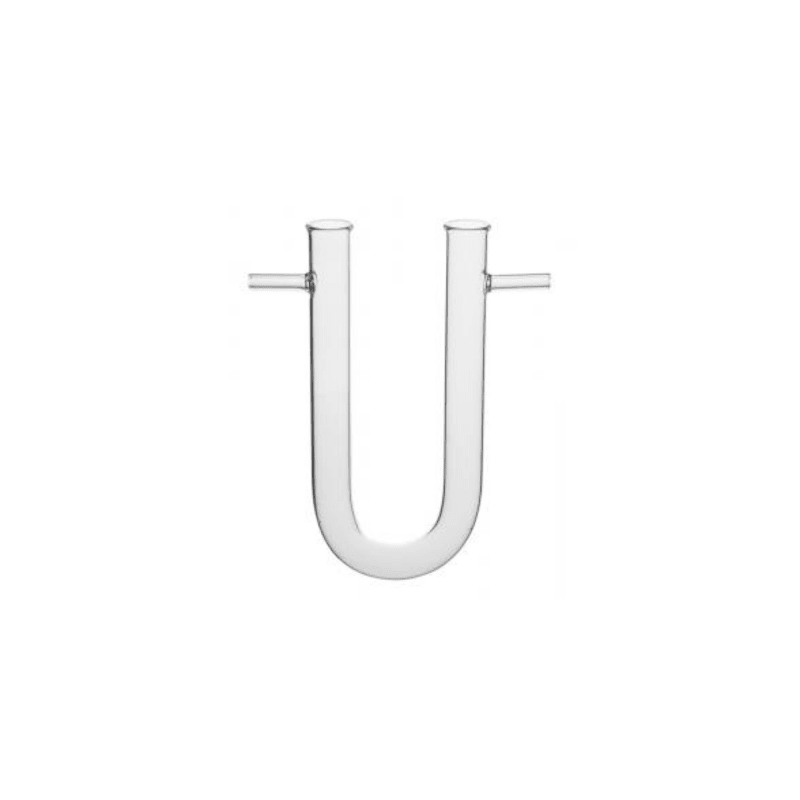

U-shaped drying tube, With Side Arms

CNW-1325-20-200

  • Borosilicate

Vendor: SmartLabs

Suited For:

Country of Origin:

Low stock! Only 8 left
R 50.00
R 50.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

A U-shaped drying tube with side arms is a specialized piece of laboratory glassware used to remove moisture from gases or to protect air-sensitive reactions from atmospheric humidity.

Key Features
  • Material: Typically made from Borosilicate 3.3 glass for high thermal resistance and chemical durability.
  • Design: A U-shaped body with two lateral side arms for connecting flexible hoses or tubing.
  • Common Sizes:

    • 100 x 12mm

    • 125 x 15mm

    • 150 x 20mm

    • 200 x 20mm

Core Functionality
  • Gas Scrubbing: Used to "scrub" moisture from generated gases (like Oxygen or Hydrogen) by passing them through a solid desiccant.
  • Reaction Protection: Placed at the exit of a reaction setup to prevent moisture-laden air from entering the vessel while still allowing pressure to equalize.
  • Desiccants Used: Commonly filled with anhydrous calcium chloride, silica gel, or potassium hydroxide.

Proper Lab Setup
  1. Packing: Place a small plug of glass wool or cotton at the base of each arm to prevent desiccant particles from escaping or blocking gas flow.
  2. Filling: Add the desiccant into the U-bend, ensuring it is packed loosely enough to allow free gas movement.
  3. Connection: Use the side arms to attach rubber or silicone tubing, ensuring airtight seals with hose clamps if necessary.
  4. Monitoring: The clear glass allows for visual monitoring of desiccant saturation (e.g., silica gel changing from blue to pink).

Specifications:

  • Material: 3.3 Borosilicate glass
  • Design: U with side arms, Rimmed
  • Neck: Rimmed
  • Brand: NONE
  • Product of China
