What Is a Tuning Fork? Physics, Pitch & Uses

A tuning fork is one of those instruments that does exactly one thing, and does it with almost nothing to go wrong. Strike it, and it rings out a single, pure, unmistakable tone. That simplicity is exactly why it's stuck around in physics classrooms, music studios, and doctors' consulting rooms for over three centuries.

This guide covers what a tuning fork actually is, why physics sets are tuned the way they are, how it's used alongside equipment like a sonometer, and where else you'll find one outside the lab.

What Is a Tuning Fork?

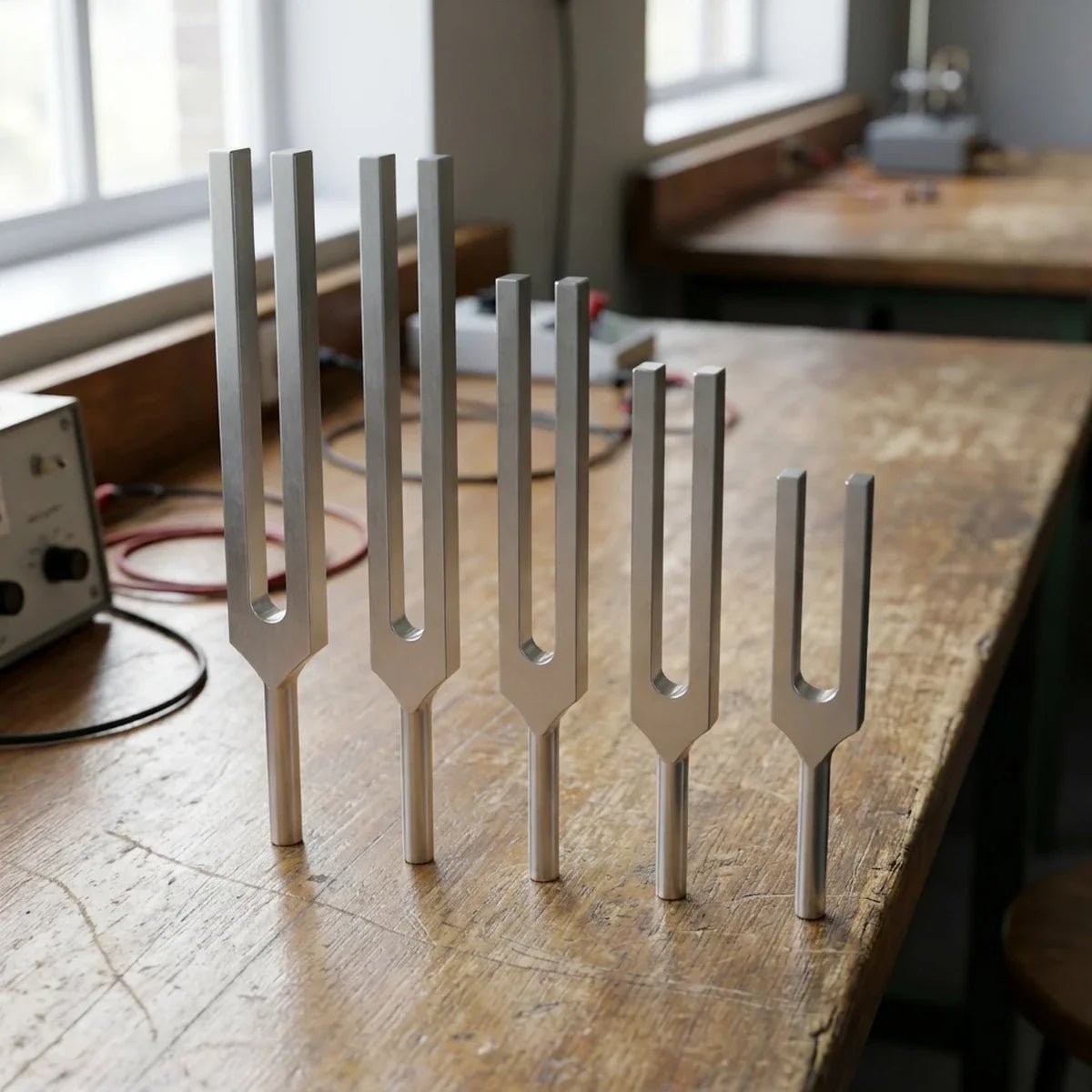

A tuning fork is a two-pronged metal bar, usually aluminium or steel, that vibrates at a specific, fixed frequency when struck. The two prongs, or tines, vibrate in opposite directions to each other, which cancels out most of the sideways forces and lets the fork ring cleanly for a long time instead of just thudding once and going quiet. Because the frequency depends on the fork's shape, length, and material, each fork is manufactured to ring at one exact pitch and no other.

A Brief History

The tuning fork was invented in 1711 by John Shore, a trumpeter and lutenist at the English royal court. Before that, musicians tuned instruments using pitch pipes, which drifted with temperature and humidity. A metal fork held its pitch far more reliably and produced a cleaner, purer tone, which is exactly why the design has barely changed in over 300 years.

Why Physics Sets Are Tuned to Scientific Pitch

If you've used a SmartLabs Aluminium Tuning Fork set, you'll have noticed the frequencies don't quite match what you'd expect from a piano or guitar tuner. That's deliberate. The set runs C 256Hz, D 288Hz, E 320Hz, F 341.3Hz, G 384Hz, A 425.6Hz, B 480Hz, and C 512Hz, which is "scientific pitch" (also called philosophical pitch), a tuning standard where middle C is fixed at exactly 256Hz.

Modern musical instruments are tuned to concert pitch, where A is fixed at 440Hz instead. Scientific pitch exists purely for convenience in physics: every octave of C works out to a clean power of two (256, 512, 1024, and so on), which makes the maths in a classroom demonstration much tidier than concert pitch numbers would.

How a Tuning Fork Is Used with a Sonometer

One of the classic uses of a tuning fork in a physics lab is finding the frequency of a vibrating string, using an instrument called a sonometer. The sonometer holds a wire under constant tension between two bridges, with a small paper rider balanced on top of the wire. A struck tuning fork is placed against the sonometer box, and the length of wire between the bridges is adjusted until the wire starts vibrating in resonance with the fork. At that point, the vibration is strong enough to throw the paper rider off the wire.

This setup also demonstrates the laws that govern a vibrating string: frequency is directly proportional to the square root of the tension in the wire, and inversely proportional to both the length of the wire and the square root of its mass per unit length. Change any one of those and the pitch of the string changes with it, which is the same underlying physics that lets a guitarist tune a string by adjusting tension or lets a bass string sound lower simply because it's thicker.

Real-World Uses Beyond the Physics Lab

Choosing a Tuning Fork Set

For school and general physics use, a boxed set covering a full octave in scientific pitch (like SmartLabs' aluminium set of eight) gives you everything needed for resonance, frequency, and sonometer experiments in one kit. Aluminium forks are light, affordable, and ring clearly, which is why they're the standard choice for teaching rather than the heavier steel forks used in some medical and professional music settings.

Shop the Range

SmartLabs stocks the tuning fork equipment covered in this guide, ready to order:

• Tuning Fork Aluminium, Boxed Set of 8, tuned to scientific pitch (C 256Hz to C 512Hz) for physics experiments
• Sonometer, Simple Pattern, for verifying the laws of vibrating strings and measuring unknown frequencies

Frequently Asked Questions

Why is a tuning fork tuned to 256Hz instead of a normal musical pitch?

Physics sets use "scientific pitch," where middle C is fixed at exactly 256Hz. Every octave of C then works out to a clean power of two, which makes classroom calculations simpler than the 440Hz concert pitch used in music.

How does a tuning fork produce such a clean tone?

The two tines move in opposite directions as they vibrate, so their sideways forces mostly cancel each other out. That's what lets the fork sustain one stable frequency for a long time instead of producing a messy mix of overtones.

What is a sonometer used for?

A sonometer is used to find the unknown frequency of a tuning fork, or to verify how a vibrating string's frequency depends on tension, length, and mass per unit length. It works by adjusting a stretched wire's length until it resonates with a struck tuning fork.

What frequency tuning fork do doctors use?

A 512Hz fork is the standard choice for the Rinne and Weber hearing tests. Lower-frequency forks, usually 128Hz, are used separately to test vibration sense in a neurological exam.

Who invented the tuning fork?

John Shore, a trumpeter at the English royal court, invented it in 1711 as a more reliable alternative to pitch pipes for tuning instruments.

Are aluminium tuning forks as accurate as steel ones?

Yes, for classroom physics work. Aluminium forks are manufactured to ring at a precise, fixed frequency just like steel ones, they're simply lighter and more affordable, which is why they're the standard choice for school sets.

The Final Word

A tuning fork hasn't needed to change much since 1711 because the physics behind it is that reliable: strike it, and it rings at one exact frequency, every time. Whether you're verifying the laws of a vibrating string with a sonometer or just demonstrating resonance to a class, the only real decision is picking the right fork, or the right full set, for what you're trying to show.
