What Is a Vacuum Pump? Types, Uses & How It Works

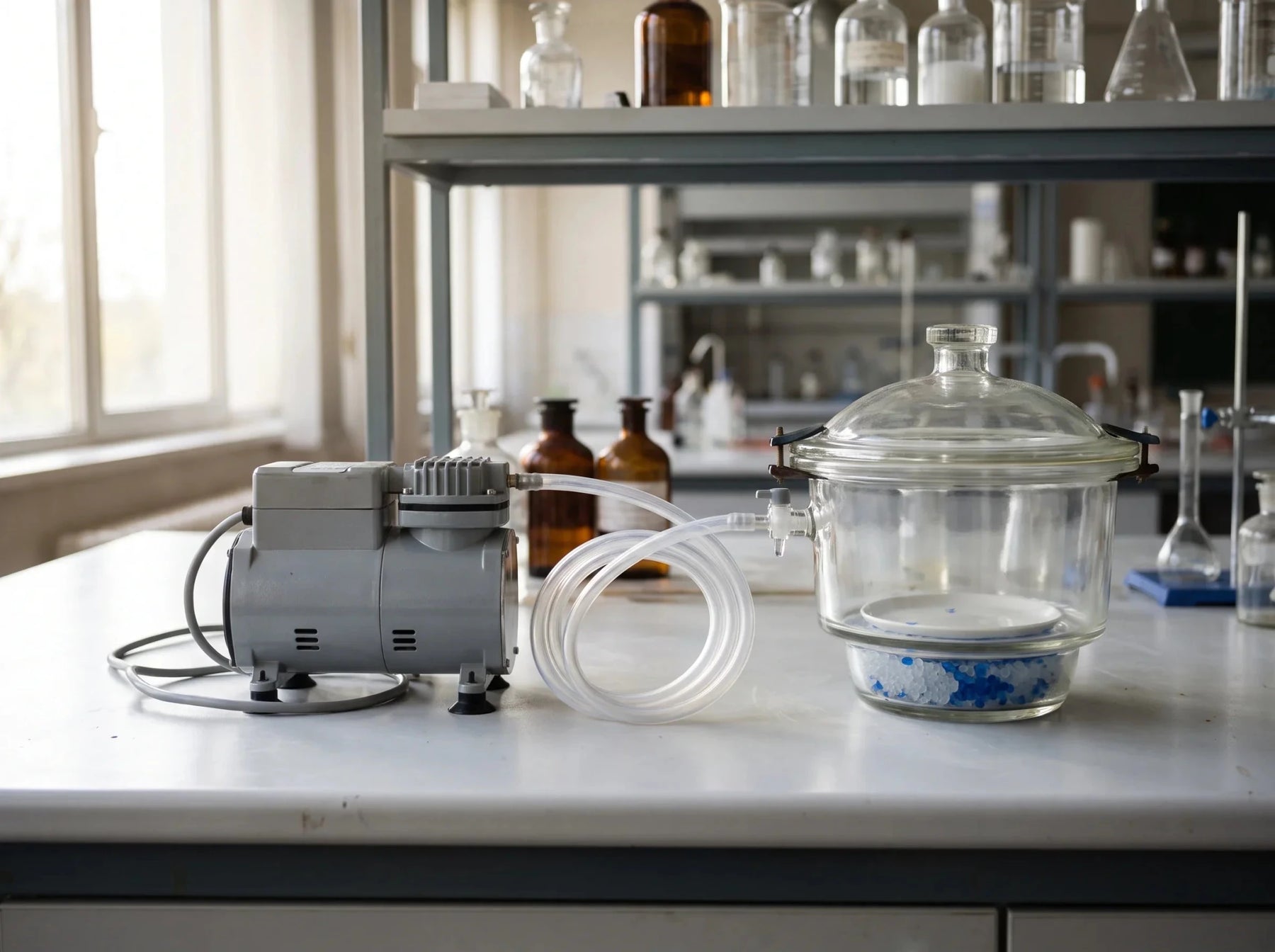

A vacuum pump is one of those pieces of equipment that quietly makes a lot of other lab work possible. It sits behind the scenes of a vacuum filtration setup, pulls air out of a desiccator to keep moisture-sensitive samples dry, and even powers the classic "sound can't travel in a vacuum" classroom demonstration. If you've ever wondered what one actually does, which type you need, or why some are hand-operated and others plug into the wall, this guide covers it.
What Is a Vacuum Pump?
A vacuum pump removes air and other gas molecules from a sealed container or system, lowering the pressure inside below normal atmospheric pressure. It doesn't create "nothing", it simply pumps gas out faster than it can leak back in, so the space left behind has fewer air molecules and therefore lower pressure. The bigger the difference between the pressure inside the container and the normal air pressure outside, the "deeper" the vacuum.
In a school or general lab setting, you'll come across two broad types: hand-operated pumps, which use a piston you move manually, and electric pumps, which use a motor-driven diaphragm to do the same job continuously without you lifting a finger.
Hand-Operated vs Electric Vacuum Pumps
| Hand-Operated Pump | Electric Diaphragm Pump | |
|---|---|---|
| How it works | A manual piston draws air out with each stroke | A motor-driven diaphragm flexes continuously to draw air out |
| Best for | Occasional use, classroom demonstrations, light filtration | Continuous or frequent use, larger volumes, unattended operation |
| Effort required | Physical effort, one stroke at a time | None, just switch it on |
| Typical cost | Lower | Higher |
| Runs on | No power source needed | Mains electricity |
SmartLabs' own Hand-Operated Vacuum Pump is a good example of the manual type. It draws about 19cc of air per stroke and can reach a maximum vacuum of around 25 in.Hg (roughly 85 kPa), which is plenty for classroom demonstrations and light filtration work. For continuous or heavier use, an electric diaphragm pump like the Mini Vacuum Pump or Adjustable Speed Vacuum Pump is the better fit, since both are oil-free and rated to run continuously for well over 24 hours without needing a break.
Understanding Vacuum Pressure Units
Vacuum pump specifications get confusing fast, mostly because different manufacturers use different pressure units. Here's how the common ones relate to each other:
| Unit | Roughly Equal To | Commonly Used For |
|---|---|---|
| 1 bar | 100 kPa | General pressure ratings |
| 1 MPa | 1,000 kPa (10 bar) | Diaphragm pump vacuum ratings, e.g. "0.08 MPa" |
| 1 atmosphere (atm) | 101.3 kPa / 1.013 bar / 29.9 in.Hg | Normal air pressure at sea level |
| 1 in.Hg | 3.39 kPa | Hand pump and automotive vacuum gauges |
So when a pump is rated at "-0.08 MPa" (80 kPa below atmospheric), that's a genuinely deep vacuum for a small diaphragm pump, and is a completely normal, healthy spec for lab-grade equipment, not a typo or an underpowered unit.
What Vacuum Pumps Are Used For
| Application | How the Vacuum Pump Helps |
|---|---|
| Vacuum (Büchner) filtration | Pulls liquid through filter paper faster than gravity alone, speeding up filtration of larger volumes |
| Desiccators | Removes moist air so samples and chemicals stay dry during storage |
| Distillation | Lowers the pressure so liquids boil at a lower temperature, useful for heat-sensitive compounds |
| Degassing | Removes dissolved gases from a liquid before an experiment |
| Physics demonstrations | Shows what happens without air, such as sound not carrying through a vacuum, or a marshmallow expanding as pressure drops |
Vacuum Filtration in Practice
The most common everyday use of a vacuum pump in a school lab is speeding up filtration. Connected to a Büchner funnel and filter flask, the pump pulls the liquid through the filter paper far faster than gravity filtration alone, which matters when you're filtering larger volumes or need to collect and dry a solid quickly. We cover the filter paper side of this setup in more detail in our filter paper guide.
Protecting Your Pump With a Cold Trap
If you're pulling vapours through a vacuum pump, especially from solvents, water, or acidic solutions, it's worth fitting a cold trap between the setup and the pump. A cold trap cools the gas stream enough that vapours condense out as liquid or ice before they ever reach the pump, rather than passing straight through it. Without one, those vapours can damage the pump's internal seals and diaphragm over time, and shorten its working life considerably. SmartLabs stocks cold traps sized to fit standard ground glass joints, so this is a cheap, simple addition that protects a far more expensive piece of equipment.
The Bell Jar Experiment: Seeing (and Hearing) a Vacuum at Work
One of the more memorable ways to demonstrate what a vacuum actually does is the classic bell jar experiment. A small electric bell is sealed inside a clear bell jar connected to a vacuum pump. With air inside the jar, you can hear the bell ring clearly. As the pump removes the air, the sound fades and eventually disappears almost completely, even though the bell is still visibly ringing. It's a simple, direct way to show that sound needs a medium, usually air, to travel through, and that a vacuum genuinely means "no medium to carry the sound." SmartLabs sells a ready-to-use vacuum pump and bell jar set built specifically for this demonstration.
Choosing the Right Vacuum Pump
The right pump comes down to how often you'll use it and how much vacuum you need:
- Occasional classroom demonstrations or light, small-volume filtration: a hand-operated pump is inexpensive, needs no power point, and is easy to store.
- Regular filtration, degassing, or any task that takes more than a minute or two: an electric diaphragm pump, such as the Mini Vacuum Pump, saves time and effort and can run unattended.
- Variable flow requirements across different experiments: an adjustable speed electric pump lets you dial the suction down for delicate samples or up for faster filtration, rather than being locked to one fixed rate.
Basic Vacuum Pump Safety
- Never pull a vacuum on a container that isn't rated for it. Use glassware built for the pressure difference, such as a proper filter flask or vacuum desiccator.
- Fit a cold trap when pulling solvent or acidic vapours through the pump.
- Check tubing and seals for cracks before use, a small leak will stop the pump from reaching a useful vacuum.
- Don't exceed the pump's rated vacuum or run an electric pump continuously beyond its stated duty cycle.
Shop the Vacuum Pump Range
SmartLabs stocks the full range covered in this guide, ready to order:
- Vacuum Pump, Hand Operated, for classroom demonstrations and light filtration
- Mini Vacuum Pump, compact, oil-free, for regular lab use
- Adjustable Speed Vacuum Pump, for variable flow requirements
- Vacuum Pump and Bell Jar Set, for the classic sound-in-a-vacuum demonstration
- Cold Trap, to protect your pump from solvent and moisture vapours
Frequently Asked Questions
What's the difference between a hand vacuum pump and an electric one?
A hand-operated pump uses a manual piston you move yourself, which works well for occasional use and classroom demonstrations. An electric pump uses a motor-driven diaphragm to pull a continuous vacuum without any physical effort, making it better suited to regular or extended use.
Can a vacuum pump run continuously?
Electric diaphragm pumps designed for lab use, like SmartLabs' Mini and Adjustable Speed Vacuum Pumps, are built to run continuously for over 24 hours without stopping. A hand-operated pump is limited by how long you're willing to keep pumping.
Why does my vacuum pump need a cold trap?
If you're pulling solvent, water, or acidic vapours through the pump, a cold trap condenses those vapours out before they reach the pump. Without one, the vapours can damage the pump's internal seals and diaphragm over time.
What does "0.08 MPa" mean on a vacuum pump spec sheet?
It means the pump can pull the pressure down to about 80 kPa below normal atmospheric pressure. That figure looks small next to a number like "1500 kPa" on a pressure gauge, but for a compact lab diaphragm pump it's actually one of the deeper vacuums you'll see at this price point.
Can a vacuum pump be used for filtration?
Yes, this is one of the most common uses in a school or general lab. Connected to a Büchner funnel and filter flask, the pump pulls liquid through the filter paper much faster than gravity filtration alone.
Is a vacuum pump dangerous to use?
Used correctly with the right glassware, a vacuum pump is safe for school and lab use. The main risks come from using vessels not rated for vacuum (which can implode) or pulling corrosive vapours through the pump without a cold trap.
The Final Word
A vacuum pump isn't complicated once you know what it's actually doing: removing air to lower pressure inside a sealed system. Whether you need a simple hand-operated pump for classroom demonstrations or an electric diaphragm pump for regular filtration and degassing work, matching the pump to how often and how hard you'll use it is the decision that actually matters.
