What Is a Measuring Cylinder? Types & Accuracy Guide
A measuring cylinder is probably the first piece of glassware most people learn to use in a science class, and it stays in daily use right through to research and industrial labs. It looks simple: a tall, narrow tube with lines marked up the side. But there's more to using one accurately than just pouring liquid in and reading the nearest number.
This guide covers what a measuring cylinder actually is, the real difference between glass and plastic versions, what Class A and Class B accuracy actually mean, and how to read one correctly.

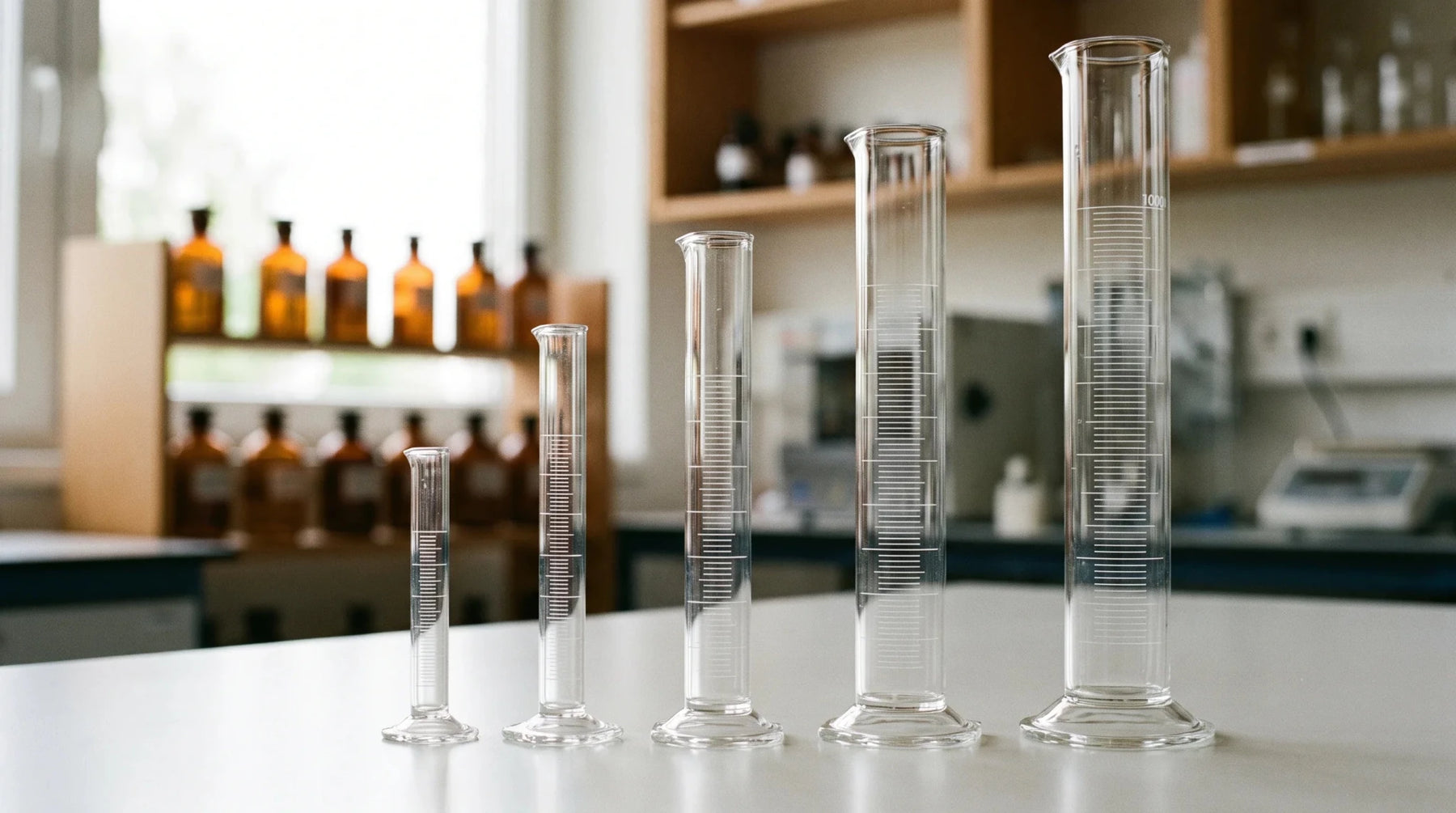

What Is a Measuring Cylinder?
A measuring cylinder, also called a graduated cylinder, is a narrow cylindrical container marked with graduation lines used to measure the volume of a liquid. The narrow shape matters: because the diameter is small relative to the height, a small change in volume produces a larger, easier-to-read change in liquid level than it would in a wide container like a beaker. This is why measuring cylinders are far more accurate for volume measurement than beakers or flasks, even though those are marked with volume lines too.
Glass vs Plastic Measuring Cylinders
| Glass (Borosilicate) | Plastic (Polypropylene) | |
|---|---|---|
| Chemical resistance | Excellent, resists most solvents and reagents | Good for water-based and general use, less resistant to some solvents |
| Heat resistance | High, can handle hot liquids | Limited, not for hot liquids |
| Durability if dropped | Can break or chip | Far more resistant to breakage |
| Clarity for reading | Very clear, easy to see the meniscus | Translucent, still readable but less crisp |
| Typical use | Analytical and research work, chemical-resistant needs | Classroom use, fieldwork, general-purpose measuring |
Neither is a straight upgrade over the other. Plastic measuring cylinders are the practical choice for a busy school lab where cylinders get knocked and dropped, while glass is worth the extra care where chemical resistance or precise optical clarity matters more.
Understanding Accuracy: Class A vs Class B
Graduated cylinders are manufactured to one of two accuracy grades, and the difference is bigger than it might look on a spec sheet. Class A cylinders are made to a tighter tolerance and are the standard for analytical work, quality control, and anywhere a certificate of accuracy is required. Class B cylinders have a wider tolerance, usually about double that of Class A, and are the standard workhorse for general lab and classroom use where that level of precision isn't needed.
Here's how the tolerances compare under the ISO 4788 standard, using figures from SmartLabs' own Class A and Class B glass cylinder ranges:
| Capacity | Class A Tolerance | Class B Tolerance |
|---|---|---|
| 10 ml | ± 0.10 ml | ± 0.2 ml |
| 25 ml | ± 0.25 ml | ± 0.5 ml |
| 50 ml | ± 0.50 ml | ± 1.0 ml |
| 100 ml | ± 0.50 ml | ± 1.0 ml |
| 250 ml | ± 1.00 ml | ± 2.0 ml |
| 1000 ml | ± 5.00 ml | ± 10.0 ml |
For most school practicals and general mixing, Class B accuracy is perfectly adequate, and it costs less. Reach for Class A when you're preparing standard solutions, doing quantitative analysis, or need documentation for quality control or accreditation purposes.
To Contain (TC) vs To Deliver (TD)
Most measuring cylinders are calibrated "to contain" (marked TC or In), which means the graduation line shows how much liquid is inside the cylinder, not how much will pour out. A thin film of liquid always clings to the glass or plastic walls when you pour, so the delivered volume is slightly less than the contained volume. For routine lab work this difference is small enough to ignore, but it's worth knowing if you ever see "TD" (to deliver) marked on a piece of glassware instead, since that's calibrated for the opposite purpose and is more common on pipettes than cylinders.
How to Read a Measuring Cylinder Correctly
The liquid surface in a narrow cylinder curves slightly where it meets the wall, forming a curve called the meniscus. Reading the wrong point on that curve is one of the most common sources of measurement error in a school lab.
- Place the cylinder on a flat, level surface.
- Bring your eye down to the same level as the liquid surface, rather than looking down at an angle.
- For clear liquids like water, read the bottom of the curved meniscus, not the top edges where the liquid climbs the glass.
- For opaque or very dark liquids where the meniscus isn't visible, read the top of the liquid surface instead.
Reading from above or below eye level is called parallax error, and it's easy to introduce without noticing. Getting your eye level with the liquid is the single biggest habit that improves accuracy.
Round Base vs Hexagonal Base
Measuring cylinders are made with either a round base or a hexagonal (six-sided) base. A round base is the traditional, lower-cost option, but it can roll if the cylinder is knocked onto its side. A hexagonal base sits flat on each of its six edges, so a knocked-over cylinder stops rather than rolling off the bench. For taller, narrower cylinders in particular, a hexagonal base also gives a more stable footprint when the cylinder is full. Plastic safety rings, sometimes called bumpers or riders, are a cheap add-on that give a round-base glass cylinder similar protection without needing to replace it.
Choosing the Right Size
Pick a cylinder as close as possible to the volume you actually need to measure, rather than defaulting to whichever one is closest to hand. Measuring 15 ml in a 250 ml cylinder is far less accurate than measuring it in a 25 ml cylinder, since you're relying on a small portion of the full graduated scale. As a rule of thumb, the liquid should fill at least a third of the cylinder for a reasonably accurate reading.
Real-Life Uses of Measuring Cylinders
| Field | Application |
|---|---|
| Education | CAPS practicals, general classroom liquid measurement, density experiments |
| Analytical chemistry | Preparing standard solutions, quantitative analysis where sample volume affects results |
| Quality control | Formulation checks in pharmaceutical, food, and beverage production |
| Field and environmental work | Rain gauges and water sample measurement, often paired with a graduated glass cylinder |
| Density and hydrometry | Measuring liquid volume alongside a hydrometer to determine density or alcohol content |
Shop the Measuring Cylinder Range
SmartLabs stocks the full range covered in this guide, ready to order:
- Measuring Cylinders, Polypropylene Plastic, Hexagonal Base, for everyday classroom and general use
- Measuring Cylinder, Glass, Class B, for general-purpose lab work
- Measuring Cylinder with Hexagonal Base, Class A, for analytical and quality control work
- Safety Rings (Riders/Bumpers), to protect round-base glass cylinders
Frequently Asked Questions
What is the difference between Class A and Class B measuring cylinders?
Class A cylinders are manufactured to a tighter tolerance, roughly half that of Class B, making them the standard for analytical work, quality control, and anywhere certified accuracy is required. Class B cylinders have a wider tolerance and are suited to general lab and classroom use.
Why is my measuring cylinder reading inaccurate?
The most common cause is parallax error, reading the liquid level from above or below rather than at eye level, or misreading the meniscus. Using a cylinder that's much larger than the volume you're measuring also reduces accuracy, since you're using only a small part of the graduated scale.
Should I read the top or bottom of the meniscus?
For clear liquids like water, read the bottom of the curved meniscus. For opaque or very dark liquids where the curve isn't visible, read the top of the liquid surface instead.
Can I use a measuring cylinder for hot liquids?
Glass borosilicate cylinders can handle moderate heat, but plastic polypropylene cylinders should not be used with hot liquids, as they can warp or deform.
What does "TC" mean on a measuring cylinder?
TC stands for "to contain," meaning the graduation line shows the volume inside the cylinder rather than the volume that will pour out. A thin film of liquid always remains on the walls after pouring, so the delivered volume is slightly less than the contained volume.
Is a hexagonal base better than a round base?
For stability, yes. A hexagonal base won't roll if the cylinder is knocked over, which reduces the risk of breakage and spills. A round base is cheaper and works fine as long as it's used carefully or fitted with a safety ring.
The Final Word
A measuring cylinder is simple to use but easy to use badly. Choose glass or plastic based on what you're measuring, pick the right accuracy class for the work, size the cylinder to the volume you actually need, and read it at eye level. Get those basics right and it's one of the most reliable pieces of equipment in the lab.
